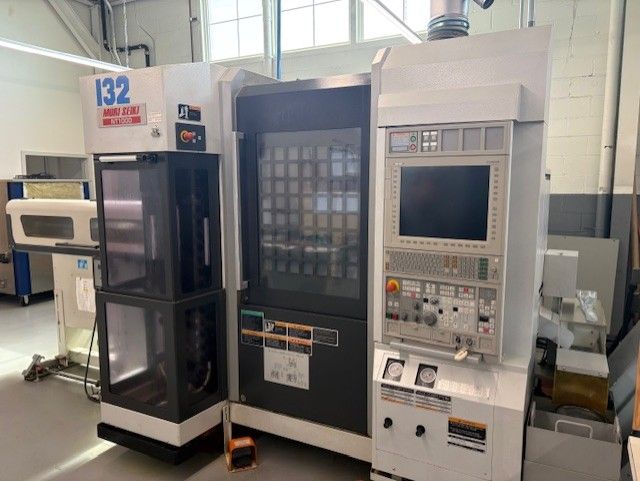

Mori Seiki MSX-711 IV CNC 6,000 rpm NT-1000/SZ 7 Axis

X1-axis travel: 15 in
Y-axis travel: 8.3 in
Z1-axis travel: 18.1 in
X2-axis travel: 6.1 in
Z2-axis travel: 24 in
B-axis: ±120°
C-axis: 360°
Control: MSX-711 IV CNC
Maximum turning diameter (tool spindle): 14.5 in
Maximum turning diameter (lower turret): 10.6 in
Maximum turning length: 16.6 in
Bar capacity (main spindle): 2 in
Main spindle speed: 6,000 rpm
Main spindle nose: JIS A2-5
Main spindle bore: 2.4 in
Main spindle motor: 15 HP
Sub spindle speed: 6,000 rpm
Sub spindle bar capacity: 1.5 in
Sub spindle motor: 10 HP
Milling spindle speed: 12,000 rpm
Milling spindle taper: CAPTO C5
Milling spindle motor: 12 HP
38-tool automatic tool changer
10-position lower turret
Collet for main spindle
5 in chuck for sub spindle
Renishaw probe
Coolant system
Chip conveyor
Workpiece discharge unit
LNS bar feeder
Machine footprint: 95.5 × 106.5 in
Machine height: 94 in
Machine weight: 19,000 lb
