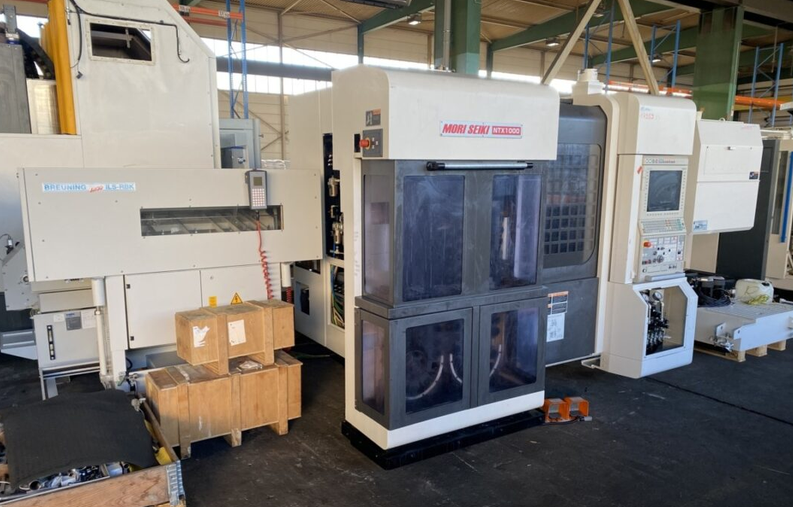

Mori Seiki MSX-711-IV Mori Seiki 5000 rpm NTX1000 6 Axis

X1-axis travel: 380 mm
X2-axis travel: 155 mm
Y-axis travel: ±105 mm
Z1-axis travel: 460 + 155 mm
Z2-axis travel: 610 mm
B-axis: ±120°
Control: MSX-711-IV Mori Seiki
Renishaw HPRA manual tool presetter
Blum Laser Control
Direct measuring system (X, Y, Z, B)
Bar capacity: 65 mm
Turning diameter: 370 mm
Swing diameter: 370 mm
Turning length: 424 mm
Main spindle speed: S1 5000 rpm
Sub spindle speed: S2 6000 rpm
Main spindle bore: 65 mm
Sub spindle bore: 38 mm
Tool taper: Capto C5
Chain tool magazine: 76 positions
Collet chuck: SMW Autoblok KSZ-MB-040-Z140
Workpiece conveyor belt
Bar feeder: Breuning Irco ILS-RBK-10012
Knoll band filter KF10/500
Through-spindle coolant: 70 bar
Chip conveyor: ConSep 2000
Total power: 45 kW
Machine dimensions: 2710 × 2430 × 2400 mm
Weight: 10.5 t
Condition: Used
