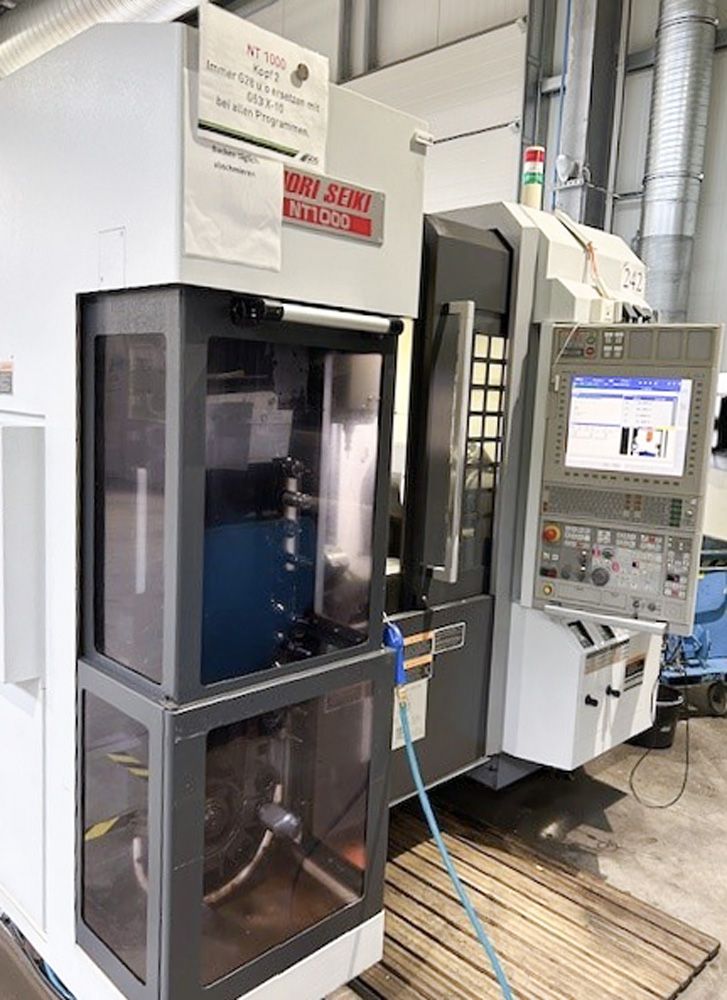

Mori Seiki FANUC FS-31iA5 (MAPPS 4) 6,000 rpm NT1000 4 Axis

X-axis travel: 380 mm
Y-axis travel: ±105 mm
Z-axis travel: 460 + 155 mm (ATC)
Lower turret X-axis travel: 155 mm
Lower turret Z-axis travel: 610 mm
B-axis: ±120°
BW-axis: 4 fixed positions (0°, -30°, -180°, -225° for workpiece unloading)
CNC control: FANUC FS-31iA5 (MAPPS 4)
Full indexing
Turning length: 424 mm
Maximum turning diameter: 370 mm
Maximum turning diameter with lower turret: 270 mm
Bar capacity: 52 mm
Main spindle speed: 6,000 rpm
Main spindle motor power: 11/7.5 kW
Main spindle bore: 73 mm
Spindle nose: JIS A2-5
Maximum torque: 223 Nm
Sub spindle speed: 1,000 rpm
Milling spindle speed: 12,000 rpm
Milling spindle motor power: 9/5.5 kW
Driven tools speed: 6,000 rpm
Driven tools motor power: 1.5/1.2 kW
Chuck: 8" hollow chuck
Tool magazine: 38 positions
Tool holder: Capto C5
Maximum tool length: 250 mm
Maximum tool length for tools under Ø70 mm: 210 mm
Maximum tool diameter: Ø70 mm
Maximum tool diameter without adjacent tools: Ø130 mm
Maximum tool weight: 5 kg
Lower turret: 10 positions
Machine length: 2,705 mm
Machine width: 2,425 mm
Machine height: 2,385 mm
Machine weight: 8,800 kg
Nominal power: 39.24 kVA
Chip conveyor
Signal lamp
High-pressure coolant pump
Spindle air blow
Dual chuck foot switch for main and sub spindle
Power-on hours: 54,061
Main spindle hours: 9,813
Sub spindle hours: 5,002
