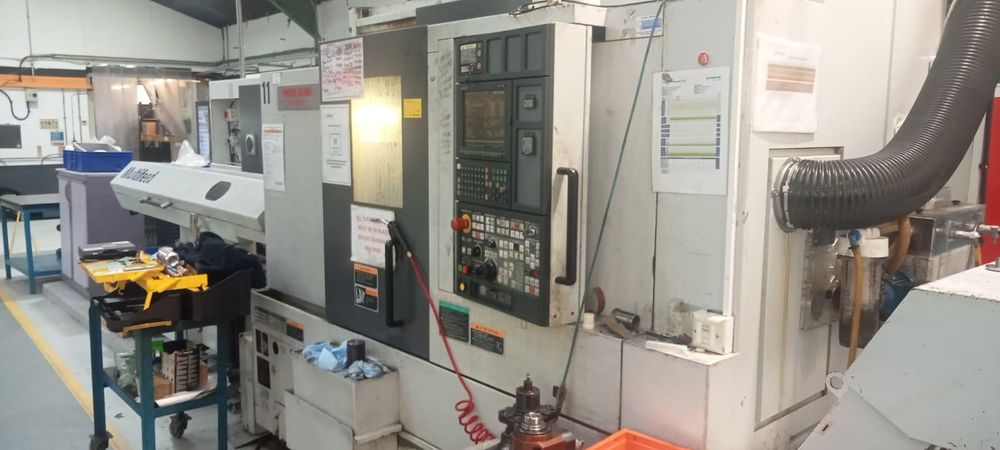

Mori Seiki Control MSX-850 5000 rpm NL2000SY 4 Axis

X-axis travel 260mm
Y-axis travel ±50mm
Z-axis travel 590mm
C-axis 0.001°
Sub spindle C-axis 0.001°

Distance between spindles 784mm
Control MSX-850
Bar capacity 65mm
Sub spindle bore 43mm
Swing 923.8mm
Swing over cross-slide 755mm
Spindle nose A2-6
Spindle motor power 15/11kW
Spindle speed 5000rpm
Sub spindle nose A2-5
Sub spindle motor 11/7.5kW
Sub spindle max speed 6000rpm
Sub spindle stroke 624mm
Milling motor power 5.5/3.7kW
Milling RPM 6000rpm
Rapid feedrates (XZYB) 30 / 30 / 10 / 30 m/min
Turret positions 12 station
Machine dimensions 3688 × 2000 × 2120mm
Machine weight 5800kg

C-axis and milling
C-axis on sub spindle
Collet chuck
Coolant system
Interlocked guards
Low-voltage light
Magazine barfeed (Hydrafeed Multi Servo)
Sub spindle
Swarf conveyor
Tool setter
Tooling
Y-axis
