Mori Seiki F31iB5 Celos Fanuc 35iB5 12000 1/min NTX 3000 /1500 2nd Gen. 4 Axis

MORI SEIKI NTX 3000 /1500 2nd Gen.
2011

Turning diameter 670 mm
Turning length 1540 mm
Control F31iB5 Celos Fanuc 35iB5
Swing diameter max. over bed cover 700 mm
Travel turret No.1 (milling spindle) X/Y/Z 495 / ±150 / 1562(+164) mm
Rotation B-axis -30° / +210°
Rapid traverse feeds turret 1 (milling head) X/Y/Z 40 / 40 / 40 m/min
RPM milling spindle 12000 1/min
Power capacity milling spindle 20.2 / 18.8 kW
Torque of milling spindle 120 / 44 Nm
Tool taper milling spindle Coromant Capto C6
Tool magazine for milling spindle (turret 1) 76
Tool change time tool/tool, milling spindle 1.25 s
Spindle 1 RPM 3000 1/min
Spindle 1 power 36 / 30 / 25 kW
C-axis spindle 1 0.001°
Bar capacity spindle 1 102 mm
Spindle 2 RPM 4000 1/min
Spindle 2 power 26 / 22 / 15 kW
C-axis spindle 2 0.001°
Bar capacity spindle 2 80 mm
Main spindle with 2 clamping pressures, separately adjustable
Automatic travel control for cylinder of main spindle
Sub spindle 2 level clamping pressure for chuck
Automatic travel control for cylinder sub spindle
Second spindle has tailstock function
Non-center turning and milling
Varying RPM
3D Quickset
Increase of precision to 0.0001 mm
Parts and total counter
Milling of pockets and islands
Coordinate system rotation
Linear scales on axis X, Y
Programmable steady KLU-A530 & SLU-X3.2
Chip conveyor
Tool setting spindle load monitor
Air blow system
Air blow system internal to cutting tool
Spindle 1 chuck Kitagawa 250 (B 210) mm
Spindle 2 chuck Kitagawa 250 (B 210) mm
Interface for coolant through the spindle 70 bar
Tailstock specification for spindle 2
Measuring probe for work piece Renishaw OMP60
Pendant hand wheel
Parts and total counter
Signal lamp 3 colors

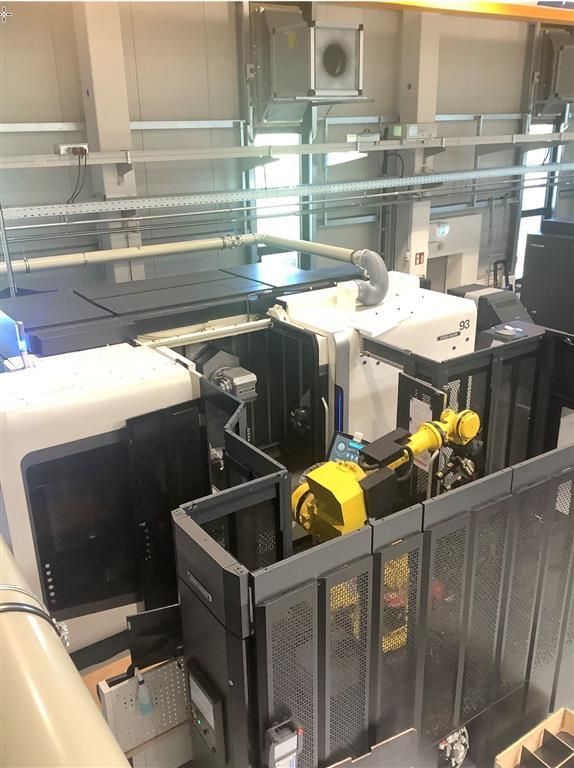

Robot interface Matris Robot System R-2000iC/165F
Automatic door
Rotoclear window
Quick fixed cycles
Program restart
Signal lamp 4 colors
Ethernet I/P Interface
Manual tool eye
Automatic door
Air filter
Oil skimmer
Tactile sensor for workpiece measuring
Air blow system external
Sub spindle spindle 1 coolant jet
Spindle 2 coolant jet
Coolant gun
Coolant through spindle 70 bar with filter Knoll
