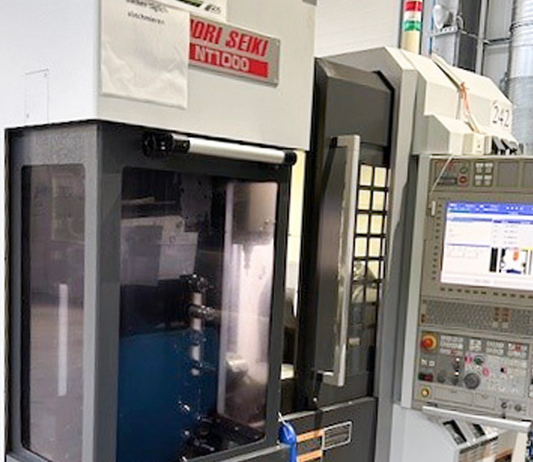

Mori Seiki FANUC FS-31iA5 (MAPPS 4) 6000 rpm NT1000 4 Axis

X-Axis Travel: 380 mm
Y-Axis Travel: ±105 mm
Z-Axis Travel: 460 + 155 mm (ATC)
B-Axis Rotation: ±120°
Lower Turret X-Axis Travel: 155 mm
Lower Turret Z-Axis Travel: 610 mm
CNC Controller: FANUC FS-31iA5 (MAPPS 4)
Turning Length: 424 mm
Max Turning Diameter: 370 mm (270 mm with turret 2)
Bar Work Capacity: 52 mm
Main Spindle Speed: 6000 rpm
Main Spindle Power: 11/7.5 kW
Spindle Bore: 73 mm
Spindle Nose: JIS A2-5
Chuck Type: Hollow chuck (8″)
Chuck Manufacturer: Kitagawa
Maximum Torque: 223 Nm
Counter Spindle Speed: 1000 rpm
BW-Axis: 4 fixed positions (0°, -30°, -180°, -225°)
Turn-Mill Spindle Indexing: Full indexing
Turn-Mill Spindle Speed: 12,000 rpm
Turn-Mill Spindle Power: 9/5.5 kW
Tool Magazine Capacity: 38
Tool Holder: Capto C5
Max Tool Length: 250 mm (210 mm below Ø70 mm)
Max Tool Diameter: Ø70/Ø130 (with/without adjacent tools)
Max Tool Weight: 5 kg
Lower Turret Tool Slots: 10
Driven Tool Speed: 6000 rpm
Driven Tool Power: 1.5/1.2 kW
Chip Conveyor
Signal Lamp
High Pressure Pump
Spindle Air Blowing
Chuck Foot Switch (Double) for Main and Counter Spindle
Working Hours (Under Power): 54,061
Working Hours (Spindle 1): 9,813
Working Hours (Spindle 2): 5,002
Nominal Power: 39.24 kVA
Machine Length: 2705 mm
Machine Width: 2425 mm
Machine Height: 2385 mm
Machine Weight: 8800 kg
