Mori Seiki Mori Fanuc MSG 501 Fanuc 18TA CNC conversational control 4000 rpm SL 250BSMC 2 Axis

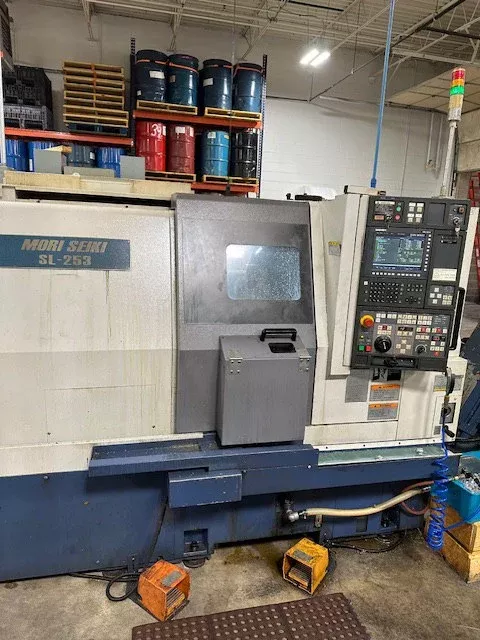

MORI SEIKI SL 250BSMC
Year: 2001

Swing over bed 26.8 in
Turning diameter 15.3 in
Shaft diameter 9.7 in
Machining length 0 in

Distance between centers 0 in
Distance between spindles 29.6 in
Chuck size 1 COLLET
Chuck size 2 COLLET

Spindle nose 1 A2-8
Spindle nose 2 A2-5
Spindle bore diameter 1 3.2 in
Spindle bore diameter 2 3.2 in
Spindle bar capacity 1 2.8 in
Spindle bar capacity 2 2.8 in
Spindle speed 1 3500 rpm
Spindle speed 2 4000 rpm
Spindle horsepower 1 25 hp
Spindle horsepower 2 10 hp

X-axis travel 1 9.3 in
X-axis travel 2 9.3 in
Z-axis travel 1 19.5 in
Z-axis travel 2 19.5 in
C-axis travel 1 0.001 in
C-axis travel 2 0.001 in
W-axis travel (sub spindle) 19.9 in

Rapid traverse X1 708 ipm
Rapid traverse X2 708 ipm
Rapid traverse Z1 945 ipm
Rapid traverse Z2 945 ipm

Turret configuration 1 12
Turret configuration 2 12

Rotary tool spindle speed 1 3000 rpm
Rotary tool spindle speed 2 3000 rpm
Rotary tool horsepower 1 8.7 hp
Rotary tool horsepower 2 8.7 hp

Machine weight 10560 lb
Chip conveyor
Removable tool setter
Mori Fanuc MSG 501 Fanuc 18TA CNC conversational control
MAPPS conversational programming
Auto parts catcher
Bar feed interface
SMW Spacesaver 2100 short magazine barfeed
Collet nose front and rear chuck
3 rotary heads
