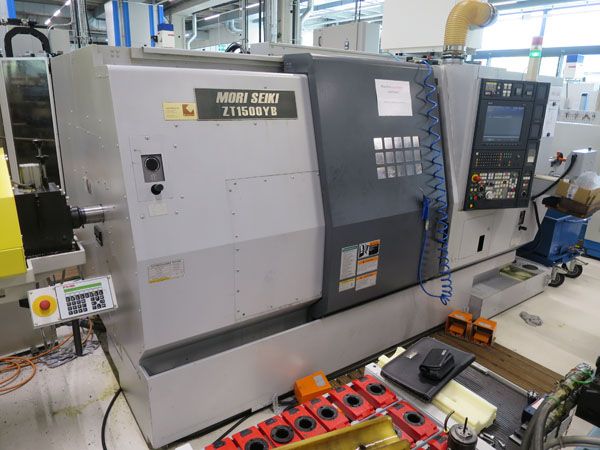

Mori Seiki Mori MSX 501 5000 rpm ZT 1500 YB 2 Axis

Control: Fanuc / Mori MSX 501
Execution: Sub-spindle included
Execution: Driven tools included
Execution: C axis included
Execution: Y axis included
Turning Diameter: 190 mm
Turning Diameter Over Bed: 310 mm
Max Turning Length: 235 mm
Distance Between Spindles: 1000 mm
3 Jaw Chuck Diameter: 210 mm
Main Spindle Taper: A2-6
Main Spindle C Axis Speed: 400 rpm
Main Spindle Dividing Resolution: 0.001 deg
Main Spindle Bore: 65 mm
Main Spindle Speed Range: 50 – 5000 rpm
Main Spindle Power: 22 / 18.5 kW
Counter Spindle Taper: A2-6
Counter Spindle C Axis Speed: 400 rpm
Counter Spindle Dividing Resolution: 0.001 deg
Counter Spindle Bore: 65 mm
Counter Spindle Speed Range: 50 – 5000 rpm
Counter Spindle Power: 22 / 18.5 kW
Tool Turret Positions (Top Turret): 16
Driven Tool Positions (Top Turret): 16
Driven Tool Speed (Top Turret): 6000 rpm
Top Turret Tool Shank: VDI30
Top Turret Longitudinal Travel: 700 mm
Top Turret Cross Travel: 140 mm
Top Turret Y Axis Travel: 80 mm (±40 mm)
Lower Turret Positions: 16
Driven Tool Positions (Lower Turret): 16
Driven Tool Speed (Lower Turret): 6000 rpm
Lower Turret Longitudinal Travel: 690 mm
Lower Turret Cross Travel: 140 mm
Rapid Traverse Longitudinal: 18 m/min
Rapid Traverse Cross: 18 m/min
Working Voltage: 400 V
Machine Weight: 7500 kg
Bar Loader: FMB Turbo 8-80
Bar Loader Diameter Capacity: 80 mm
Bar Loader Length Capacity: 3000 mm
Collet Chuck Manufacturer: Hainbuch
High Pressure Coolant Pump: 22 bar
Chip Conveyor
Coolant System with Paper Clarifier
Tool Presetter Device
Workpiece Pick-up Attachment
Exhauster System
