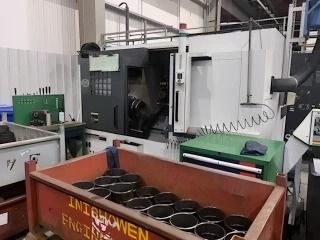

Mori Seiki Mori MSX850-III 4000 rpm NL2500SY 700 4 Axis

x-axis travel 260 mm
y-axis travel ±50 mm
z-axis travel 795 mm
C axis 0.001°

sub spindle C axis 0.001°
control Mori MSX850-III
coolant system
interlocked guards
low voltage light
swarf conveyor
bar capacity 80 mm
swing 923 mm

spindle speed 4000 rpm
spindle motor power 18/15 kW
spindle nose A2-8
sub spindle max speed 6000 rpm
sub spindle bore 43 mm
sub spindle motor 11/7.5 kW
sub spindle nose A2-5

milling rpm 6000 rpm
rapid feedrate X 30 m/min
rapid feedrate Y 10 m/min
rapid feedrate Z 30 m/min

tool size 25 x 25 mm
turret positions 12 station
boring bar holder diameter 50 mm
machine dimensions 3100 x 2050 x 2120 mm
machine weight 6200 kg
3-jaw chuck
Y-axis
sub spindle
