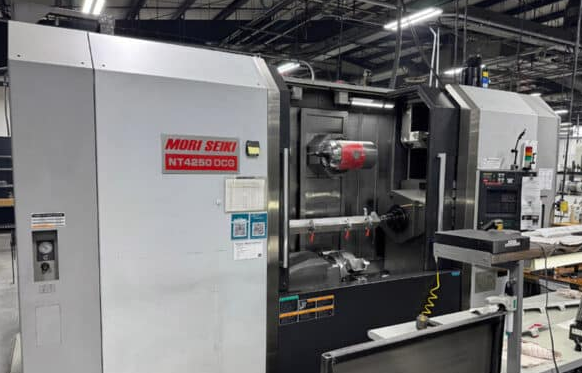

Mori Seiki MORIC MSX-711 III 4000 RPM NT4250DCG/1500SZ 4 Axis

Axis travel X (tool spindle) 29.5”
Axis travel Y (tool spindle) ±8.3”
Axis travel Z (tool spindle) 61” + 3.9”
B axis rotation (tool spindle) ±120°

Axis travel X (turret 2) 7.7”
Axis travel Z (turret 2) 60”

Control MORIC MSX-711 III
Max swing of workpiece 28.7”
Swing over cross slide 28.7” / 15.7” (turret 2)
Max distance between centers 73.3”
Max turning diameter 25.9” / 13.7” (turret 2)
Max turning length 60.7”
Car work capacity 3.1”

Spindle 1 speed 4000 RPM
Spindle 1 ranges 2
Spindle 1 nose JIS A2-8
Spindle 1 through hole 3.6”
Spindle 1 indexing increment 0.0001°
Spindle 1 torque 534 / 442.5 / 396.8 / 302.4 ft-lbf
Spindle 2 speed 4000 RPM
Spindle 2 ranges 2
Spindle 2 nose JIS A2-8
Spindle 2 through hole 3.6”
Spindle 2 indexing increment 0.0001°
Spindle 2 torque 534 / 442.5 / 396.8 / 302.4 ft-lbf

Tool spindle stations 1
Tool spindle rotary speed 6000 RPM
Sub turret with milling
Sub spindle
Cooljet HPC
Capto C6

Automatic tool changer 40
Chip conveyor
Tool presetter
Renishaw probe
Mist collector

Static and live tool holders for lower turret
Hydraulic chuck 10” (2 units, 3-jaw)
