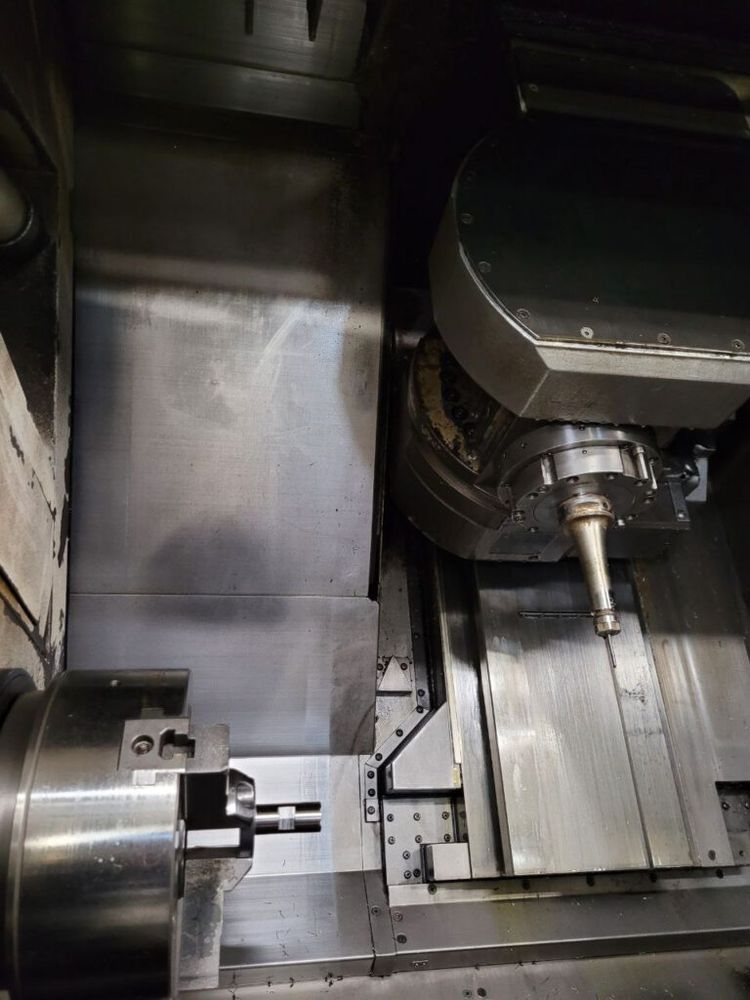

Mori Seiki MSG-501 MAPPS (Fanuc) 4600 RPM MT 2000 SZ 4 Axis

X Axis Travel: 565 mm
Y Axis Travel: 160 mm
Z Axis Travel: 1077 mm
B Axis Rotation: ±120°

Control: MSG-501 MAPPS (Fanuc)
Swing Diameter: 550 mm
Turning Length: 1020 mm
Bar Capacity: 65 mm
Main Spindle Speed: 4600 RPM
Main Spindle Power: 22 kW

Counter Spindle Speed: 6000 RPM
Counter Spindle Power: 15 kW
Milling Spindle Speed: 7000 RPM
Milling Spindle Taper: Capto C6

Tool Magazine Capacity: 60 positions
Tool Magazine Type: Chain magazine
Lower Turret Type: Drum turret
Lower Turret Stations: 12
Driven Tool Speed (Lower Turret): 4000 RPM
Swarf Conveyor: Yes
Preparation for 70 bar: Yes
High Pressure Pump: 10 bar
Barfeeder Interface: Yes
