Mori Seiki MSX-711-IV Mori Seiki 6000 rpm NTX1000 6 Axis

X1-axis travel: 380 mm
X2-axis travel: 155 mm
Z1-axis travel: 460+155 mm
Z2-axis travel: 610 mm
Y-axis travel: ±105 mm
B-axis: ±120°
Control: MSX-711-IV Mori Seiki
Turning diameter: 370 mm
Turning length: 424 mm
Swing diameter: 370 mm
Bar capacity: 65 mm
Spindle speed: 5000/6000 rpm
Spindle bore: 65/38 mm
Tool taper: Capto C5
Tool magazine capacity: 76 tools
Turret tool positions: 10
Total power requirement: 45 kW
Machine weight: 10.5 t
Machine dimensions: 2.71 × 2.43 × 2.40 m

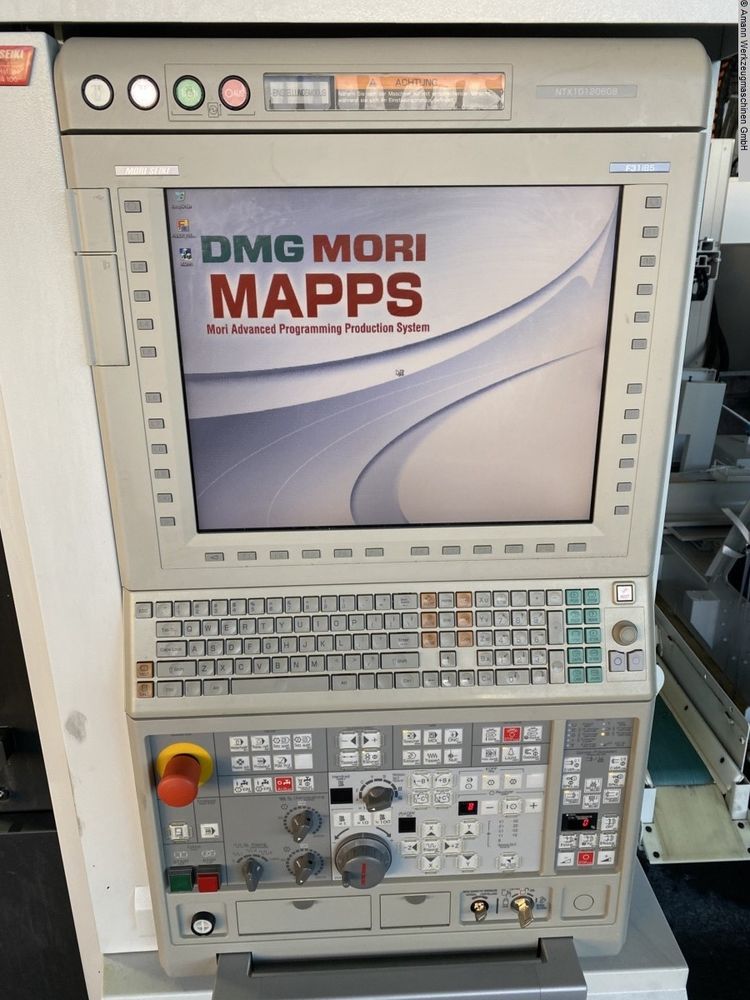

MAPPS control system
Renishaw HPRA manual tool presetter
Blum Laser Control
Direct measuring system X, Y, Z, B
Collet chuck SMW Autoblok KSZ-MB-040-Z140
Workpiece conveyor belt
Bar feeder Breuning Irco ILS-RBK-10012
Knoll band filter KF10/500 with internal coolant up to 70 bar
Chip conveyor ConSep 2000
