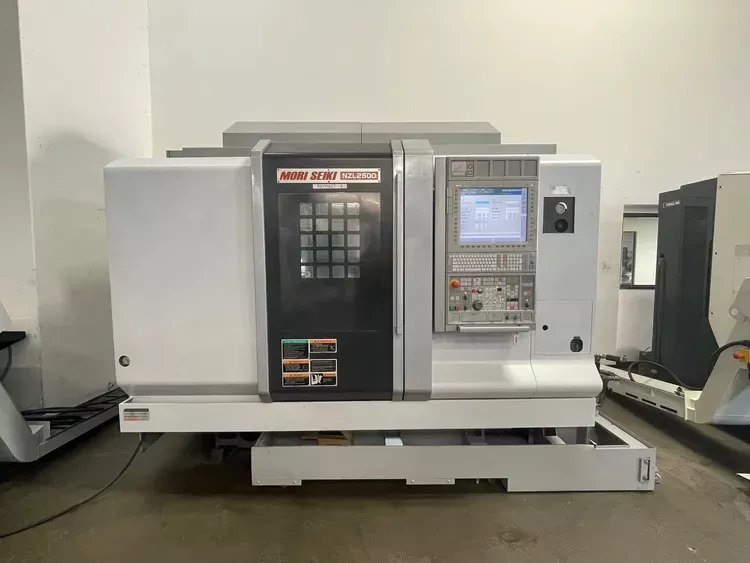

Mori Seiki MSX-853 W/ MAPPS IV CNC control 4000 RPM NZL2500Y / 600 4 Axis

MORI SEIKI NZL2500Y / 600
Year: 2011

Swing over bed 30.7"
Turning diameter 14.5"
Turning diameter shaft 10.2"
Turning length 23.6"
Distance between centers 27"
Distance between spindles 0
Chuck size 12"
Spindle nose A2 - 8
Spindle bore diameter 3.1"
Bar capacity 2.6"
Spindle speed 4000 RPM
Spindle horsepower 34.7 HP
X-axis travel 8.8", 6.6"
Z-axis travel 25.6", 25.6"
Y-axis travel 4.8"
C-axis indexing 0.001 deg
Rapid traverse rate X 984 IPM
Rapid traverse rate Z 1181 IPM
Rapid traverse rate Y 590 IPM
Turret tool positions 12, 8
Turret rotary tool speeds 6000 RPM
Turret rotary tool horsepower 7.5 HP
Tailstock quill diameter 4.3"
Tailstock taper MT 4
Tailstock quill travel 5.9"
Programmable tailstock Yes
Tailstock travel 23.6"
Machine weight 16,940 lbs

MSX-853 W/ MAPPS IV CNC control
Chip conveyor right discharge
10" 3-jaw quick jaw change chuck
MAPPS IV conversational programming
Manual swing down in machine tool setter
Two O.D. rotary heads
Two I.D. rotary heads
Full complement of static tool holders
Chip blaster system
