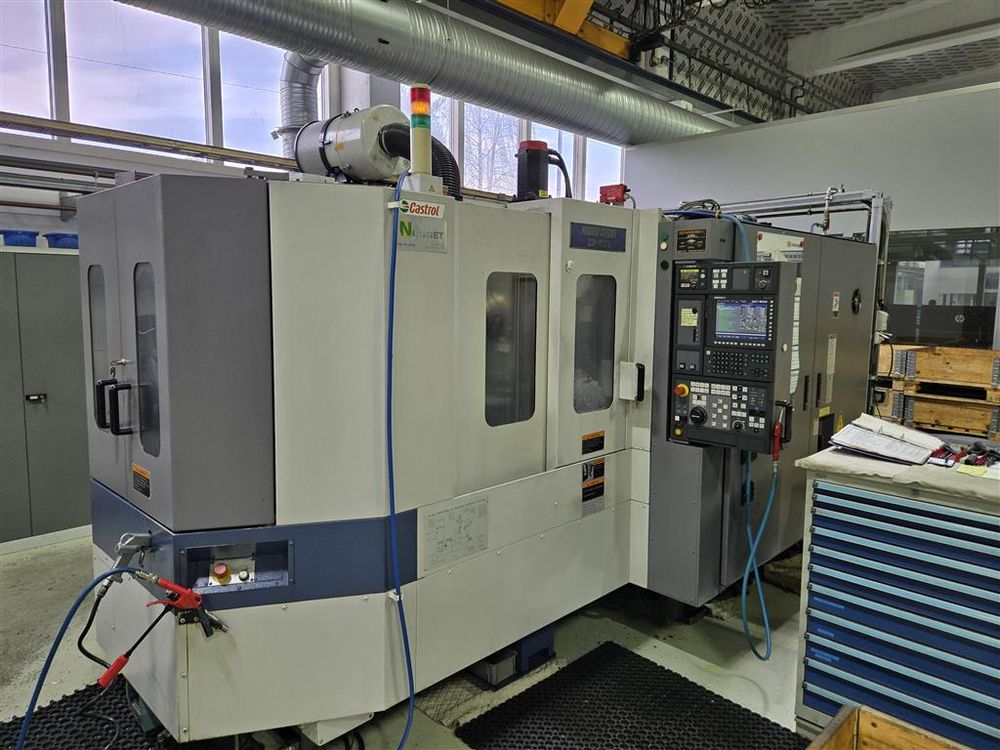

Mori Seiki SH 403 4 Axis

X-axis travel 560 mm
Y-axis travel 510 mm
Z-axis travel 510 mm
B-axis fully integrated 360.000 x 0.001°

Control Fanuc MSX 501 MAPPS III
Number of tool stations 40 BT40
Maximum tool weight 12 kg
Spindle drive 22 kW
Spindle speeds 12000 RPM
Rapid travel X/Y/Z 42 m/min
Pallet dimension 2x 400x400 mm
Maximum table load 0.5 t
Maximum working diameter 610 mm
Total power requirement 56 kVA
Machine weight approx. 8.7 t
Machine dimensions approx. 2.9 x 4.1 m

Features
Chip conveyor
Coolant through spindle 70 bar with filter
Table probe for tool breakage and length measuring
Tactile sensor for workpiece measuring
Air filter
