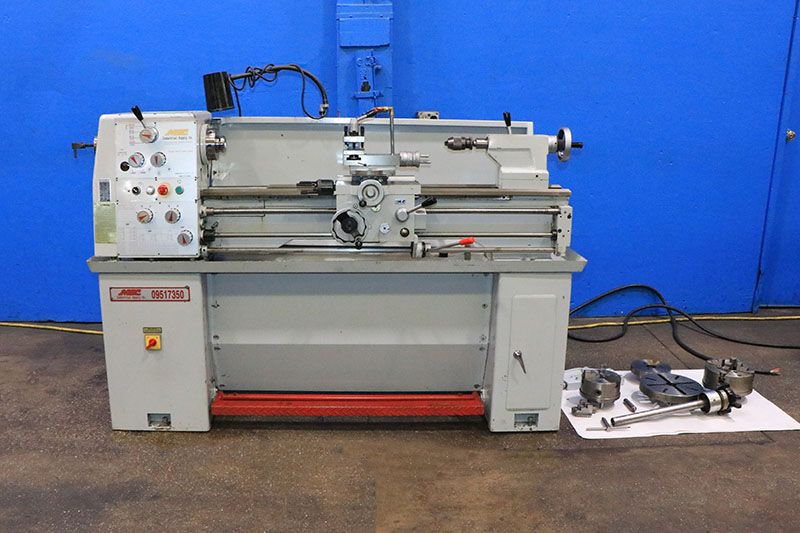

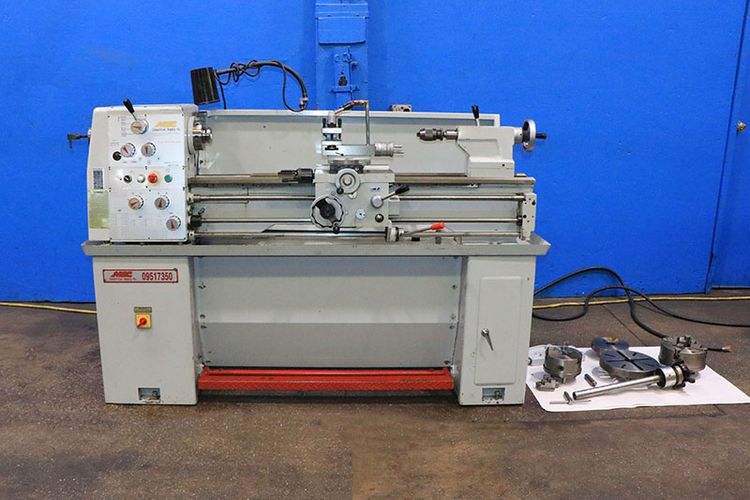

MSC Engine Lathe 2000 RPM MSC - Vectrax 09517350 13"

Ref : 2728867-3-CP
Condition : Used
Manufacturer : MSC
Type : Engine Lathe
Spindle Speed : 2000 RPM
Model : MSC - Vectrax 09517350 13"
Year(s) : 2007
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

MSC - Vectrax 09517350 13"
2007

Swing Over Bedways 13"
Swing in Removable Gap 19.5"
Swing Over Cross Slide 7.5"
Hole Through Spindle 1.375"
Distance Between Centers 40"
Spindle Nose D1-4" Camlock
Spindle Speed Range (8) 105 - 2000 RPM
English Threading Range (32) 4 - 56 TPI
Metric Threading Range (24) 0.4 - 7 mm
Longitudinal Feed Range 0.0015" - 0.010" IPR
Cross Feed Range 0.0005" - 0.0035" IPR
Tailstock Spindle Taper #3MT
Tailstock Spindle Travel 4.375"
Approximate Floor Space 76" L x 30" W x 58" H
Approximate Weight 2,025 lbs
Inch & Metric Threading Capability
Lever Type 5C Collet Closer & Nose Piece
6" 3-Jaw Chuck
8" 4-Jaw Chuck
10" Faceplate
Dogplate
Follow Rest
Dead Center
Albrecht 0.5" Capacity Drill Chuck
Thread Dial
Toolpost
Foot Brake
Coolant System
Hardened Bed Ways
3 HP Main Motor 220/440/3/60, Currently Wired 220 Volt
