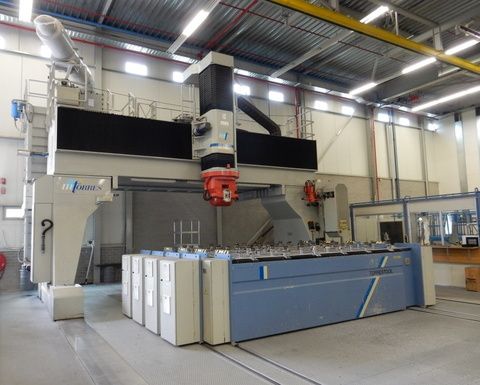

MTorres TORRESMILL MGP51350-TT 5 Axis
Ref :
2804766-3-CP
Condition :
Used
Manufacturer :
MTorres
Model :
TORRESMILL MGP51350-TT
Nb Of Axis :
5 Axis
Year(s) :
2003
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 13000 mm
Y-axis travel: 4500 mm
Z-axis travel: 1000 mm
A-axis: 110°
C-axis: 190°
Control: Siemens Sinumerik 840D CNC
5-axis simultaneous machining
Positioning speed X/Y/Z: 15000 mm/min
Positioning speed A/C: 10 rpm
Distance between columns: 6500 mm
Spindle speed: 20–30000 rpm
Spindle motor: 20 kW
Spindle taper: HSK-A63
Automatic tool changer: 20 stations
Maximum tool weight: 10 kg
Maximum tool length: 125 mm
Maximum tool diameter: 80 mm
TorresTool pogo stick clamping system
16 NC-controlled clamping units
TorresTool table: 11500 × 3500 × 750 mm
5-axis gantry routing and drilling machine
Machine dimensions: 19000 × 11000 × 6770 mm
Weight: Approx. 70000 kg
