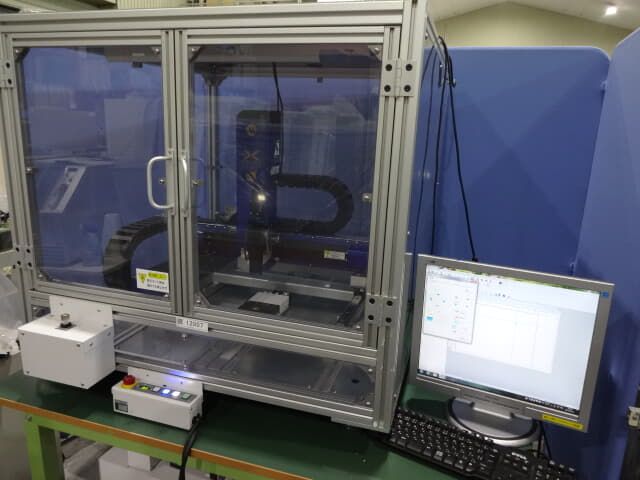

Musashi Engineering XM680SX-3A-L-SS

• Number of control axes: 3 axes (X, Y, Z)
• Control method: PTP control
• Control method: Interpolation control
• Motion range X-axis: 600 mm
• Motion range Y-axis: 800 mm
• Motion range Z-axis: 150 mm
• PTP operating speed X-axis: 1–470 mm/s
• PTP operating speed Y-axis: 1–830 mm/s
• PTP operating speed Z-axis: 1–300 mm/s
• Interpolation speed X-axis: 0.1–470 mm/s
• Interpolation speed Y-axis: 0.1–830 mm/s
• Interpolation speed Z-axis: 0.1–300 mm/s
• Repeat positioning accuracy X-axis: ±0.01 mm
• Repeat positioning accuracy Y-axis: ±0.01 mm
• Repeat positioning accuracy Z-axis: ±0.01 mm
• Payload capacity: 2.5 kg
• Program input method: Teaching pendant
• Program input method: PC
• Program capacity: 40,000 steps
• Program channels: 999
• Program editing software: MuCAD V
• Power supply: Single-phase AC200–240V 50/60Hz
• Power consumption: 300 W
• Main unit dimensions: W1052.5 × D1123 × H490 mm
• Main unit weight: 67.5 kg
• Controller dimensions: W450 × D340 × H265 mm
• Controller weight: 18 kg
• Included equipment: PC
• Included equipment: Monitor
• Included equipment: LED spot lighting power supply
• Included equipment: Temperature regulator
