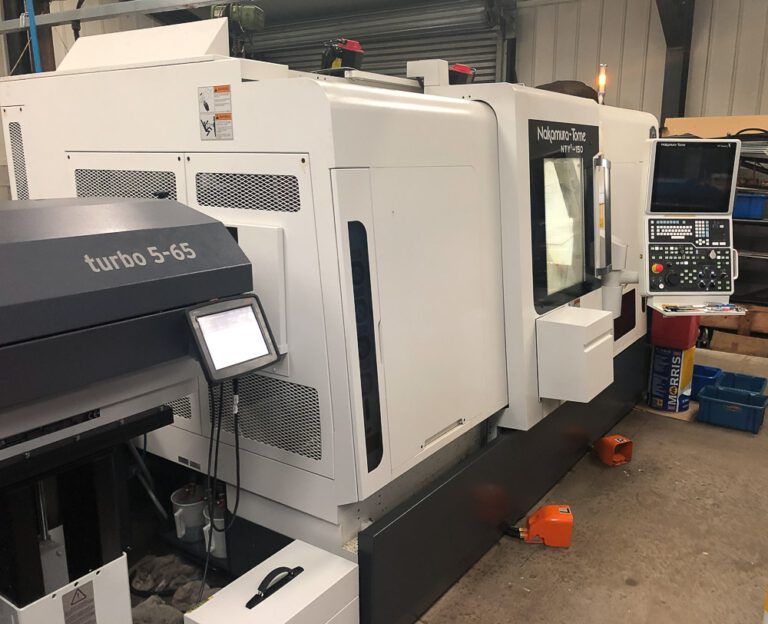

Nakamura Control Nakamura-Tome NT SmartX 4500 RPM NTY3-150 CNC Lathe 11 Axis

X1/X2/X3 travel 160.5 mm
Z1/Z2 travel 503 mm
Z3 travel 685 mm
Y1/Y2 travel ±45 mm
Y3 travel ±35 mm
B axis 770 mm
C axis 0.001°
Control Nakamura-Tome NT SmartX

Max turning diameter 225 mm
Bar capacity 65 mm
Distance between spindles 200 – 970 mm
Main spindle speed 4500 RPM
Main spindle nose A2-6
Sub spindle speed 5000 RPM
Sub spindle nose A2-5
Turrets 3
Turret capacity 12 positions each
Driven tool stations 3 x 12
Milling drive power 5.5 kW
Driven tool speed 6000 RPM

Features / Options / Equipment
Finished part gripper with conveyor belt
Parts catcher on main spindle
Renishaw toolsetter on main and counter spindle
Chip conveyor LNS Turbo MH500
Tool holder package: 22 drill holders, 6 turning holders, 1 parting-off holder, 1 remnant catch holder
Bar feeder FMB Turbo 5-65 / 3200A (bar length up to 3200 mm, diameter up to 65 mm)
