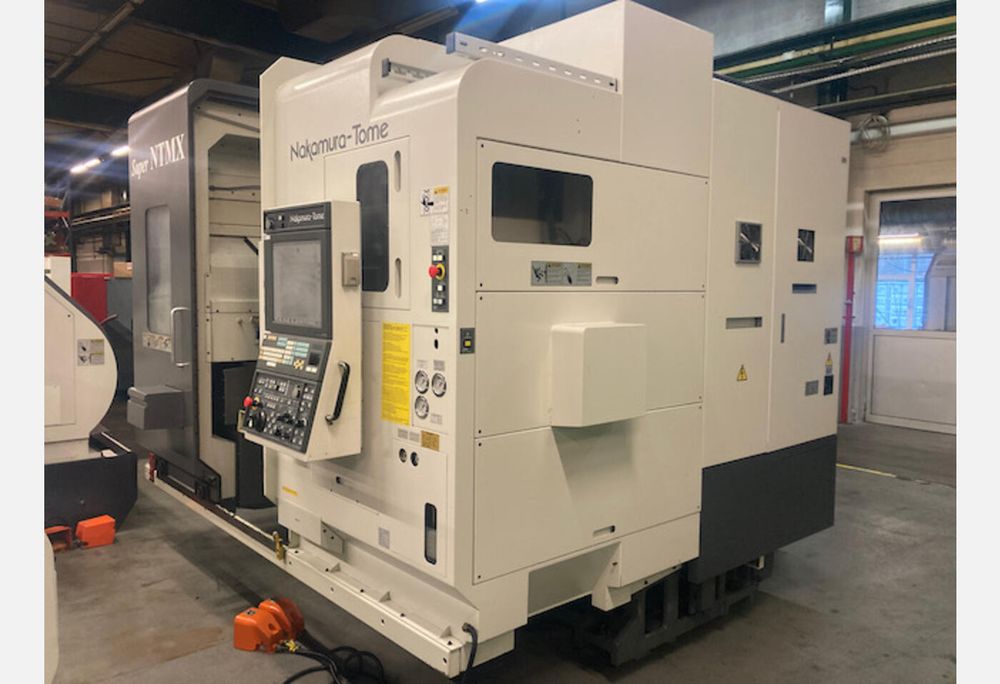

Nakamura Fanuc 31i-A5 4500 rpm SUPER NTMX 3 Axis

X Axis Travel: 570 mm
Y Axis Travel: ±100 mm
Z Axis Travel: 1297 mm

Rapid Traverse X Axis: 30 m/min
Rapid Traverse Y Axis: 16 m/min
Rapid Traverse Z Axis: 40 m/min

Lower Turret X Axis Travel: 130.5 mm
Lower Turret Z Axis Travel: 658 mm
Lower Turret Rapid X Axis: 16 m/min
Lower Turret Rapid Z Axis: 40 m/min

Main Spindle C Axis: 360°
Main Spindle C Axis Indexing: 0.001°
Sub Spindle C Axis: 360°
Sub Spindle C Axis Indexing: 0.001°
B Axis Range: 190°

Control: Fanuc 31i-A5

Main Spindle Bar Capacity: 65 mm
Sub Spindle Bar Capacity: 51 mm

Main Spindle Speed: 4500 rpm
Main Spindle Motor Power: 11 kW
Main Spindle Nose: A2-5
Sub Spindle Speed: 5000 rpm
Sub Spindle Motor Power: 11.5 kW
Sub Spindle Nose: A2-5
Sub Spindle Bore: 63 mm
Distance Between Spindles: 210–980 mm

Milling Spindle Speed: 45–12,000 rpm
Milling Spindle Motor Power: 7.5 kW
Milling Spindle Motor Power (Low): 3.7 kW

Tool Positions: 24 x 2
Maximum Tool Weight: 4 kg
Tool Change Time: 1.3 s

Features / Equipment:
Part recovery arm
Bar feeder interface
Rigid tapping function
Polygon forming function
High-pressure pumps
Chip conveyor
Hydraulic bar feed tube
