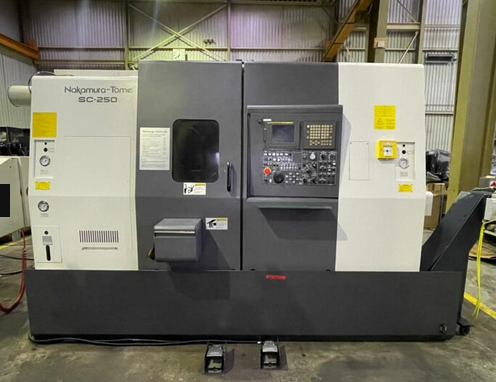

Nakamura CNC controller FANUC 5000 rpm SC-250 5 Axis
Ref :
2767236-3-AW
Condition :
Used
Manufacturer :
Nakamura
Controller :
CNC controller FANUC
Spindle Speed :
5000 rpm
Model :
SC-250
Nb Of Axis :
5 Axis
Year(s) :
2006
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel 177.5 mm
Y-axis travel ±41 mm
Z-axis travel 550 mm
B-axis travel 689 mm
C-axis 360° with 0.001° indexing
CNC controller FANUC
Milling function
Bar work capacity 51 mm
Maximum turning diameter 190 mm
Turning length 500 mm
Distance between spindle centers 780 mm
Main spindle speed 5000 rpm
Main spindle drive power 15 / 11 kW
Main spindle maximum torque 47.2 Nm
Counter spindle speed 5000 rpm
Counter spindle drive power 11 kW
Driven tool speed 3600 rpm
Driven tool drive power 5.5 / 3.7 kW
Upper turret tool holder VDI-30
Number of tool stations 12
Chip conveyor
Part catcher
Bar loader RBK 10016
Machine length 4390 mm
Machine width 1741 mm
Machine height 2065 mm
Machine weight 5000 kg
Installed power 31.43 kVA
