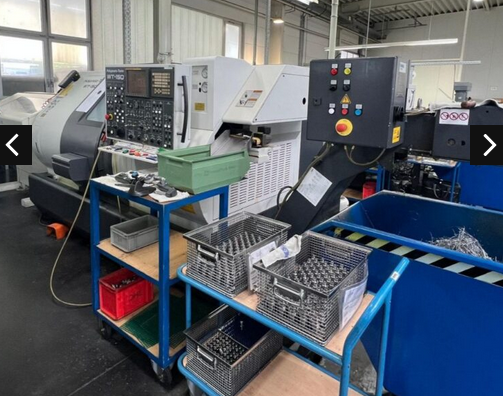

Nakamura Fanuc 18i-TB 5000 rpm WT 150 5 Axis

X-axis travel: 157.5 mm
Y-axis travel: 35 mm
Z-axis travel: 464.8 mm
B-axis travel: 600 mm
C-axis: 360° (0.001°)
CNC controller: Fanuc 18i-TB
Turning length: 399 mm
Max turning diameter: 190 mm
Distance between spindle centers: 750 mm
Bar work capacity: 52 mm
Main spindle speed: 5000 rpm
Counter spindle speed: 4500 rpm
Drive power spindle: 11 / 7.5 kW
Speed driven tools: 6000 rpm
Drive power driven tools: 5.5 / 3.7 kW
Number of tool slots upper turret: 12
Number of tool slots lower turret: 12
Milling function: Both turrets
Nominal potential: 67.2 kVA
Length: 3675 mm
Width: 2258 mm
Height: 1885 mm
Weight: 9000 kg

Features / Equipment
Chip conveyor
Part catcher
Work area light
Bar loader RBK 10016
