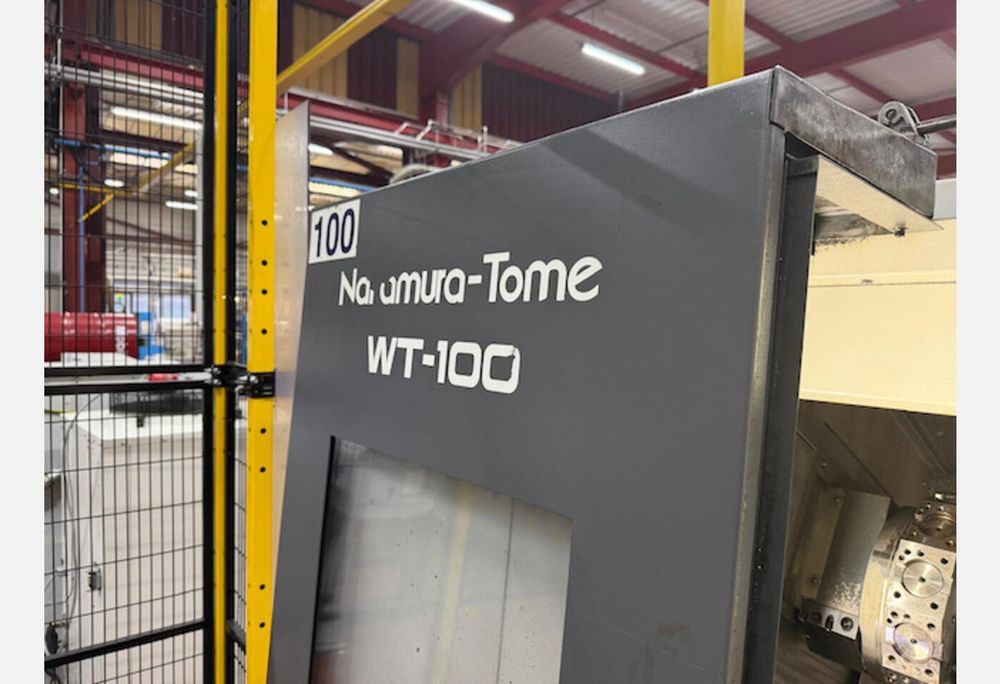

Nakamura FANUC 31i Model A 6000 rpm WT 100 4 Axis

X Axis Travel Upper Turret: 135 mm
Y Axis Travel Upper Turret: ±31 mm
Z Axis Travel Upper Turret: 503 mm
X Axis Travel Lower Turret: 135 mm
Z Axis Travel Lower Turret: 503 mm
C Axis Main Spindle: 360° indexing increment 0.001°
C Axis Sub Spindle: 360° indexing increment 0.001°
Control: FANUC 31i Model A
Maximum Bar Diameter: 42 mm
Maximum Turning Diameter: 190 mm
Maximum Turning Length: 503 mm
Main Spindle Nose: A2-5
Main Spindle Speed: 6000 rpm
Main Spindle Power: 11/7.5 kW
Sub Spindle Nose: A2-5
Sub Spindle Speed: 6000 rpm
Sub Spindle Power: 11/7.5 kW
Upper Turret Positions: 12
Upper Turret Motorized Positions: 12
Lower Turret Positions: 12
Lower Turret Motorized Positions: 12
Set of Tool Holders
Loading and Unloading Table
Chip Conveyor
Robot FANUC M-10ia-7L
