Nakamura Tome CNC CONTROL 4,500 RPM WT-150 3 Axis

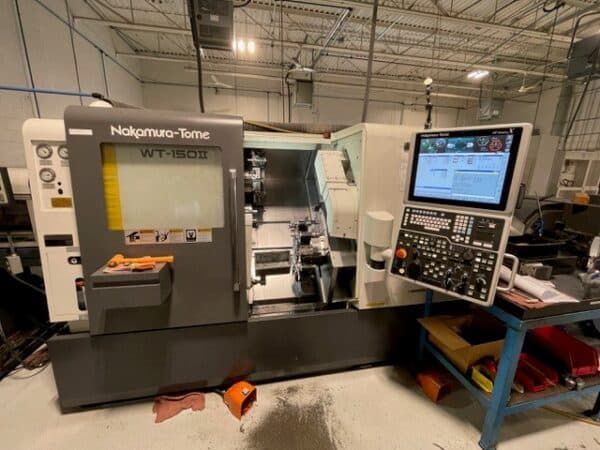

Nakamura-Tome WT-150
2017

Max Turning Diameter: 7.48″
Max Turning Length: 15.74″
Distance Between Spindle Noses: Max. 29.52″ / Min. 7.87″
Max Bar Capacity: 2.56″
Hole Through Draw Tube (L/R): 2.6″ / 2.05″
Spindle Bore (L/R): 3.15″ / 2.48″
Chuck Size: 6″
C Axis Rotation (Both Spindles): 0.001°
Spindle Speed (Left): 4,500 RPM
Spindle Speed (Right): 5,000 RPM
Left Spindle Motor: 15/11 kW / 20 HP
Right Spindle Motor: 11/7.5 kW / 15 HP
Upper Turret Tool Positions: 24
Upper Turret Live Tool Positions: 12
Upper Axes Travel (X/Z): 5.61″ / 18.30″
Upper Y-Axis Travel: ±1.38″
Upper Driven Motor Power: 5.5 kW / 7.37 HP
Upper Driven Tool Speed: 6,000 RPM
Lower Turret Tool Positions: 24
Lower Turret Live Tool Positions: 12
Lower Axes Travel (X/Z): 6.59″ / 18.30″
Lower Driven Motor Power: 5.5 kW / 7.37 HP
Lower Driven Tool Speed: 6,000 RPM
Floor Space Required (L x W): 142″ x 78″
Approximate Machine Weight: 19,600 lbs
Power Requirement: 67.2 kVA
2 Radial Live Tool Holders
2 Axial Live Tool Holders
Barfeeder
1000 PSI Chip Blaster Unit
Super Efficient Mist Collector
Detachable Tool Presetter
