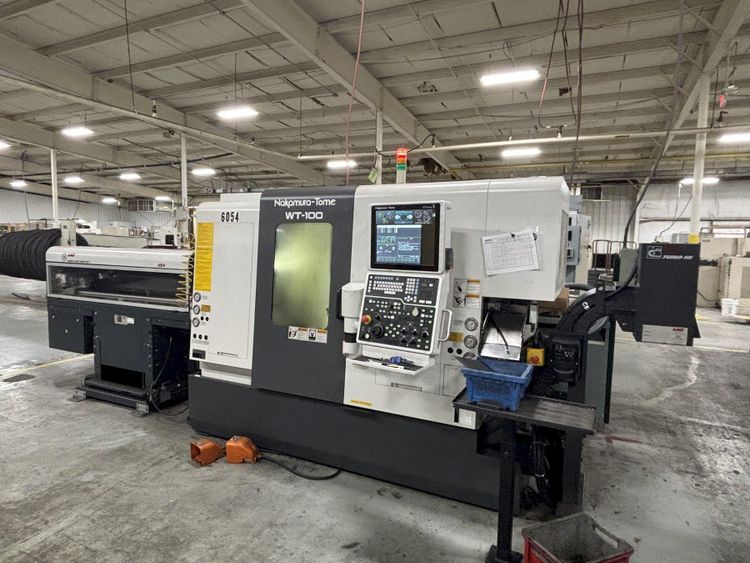

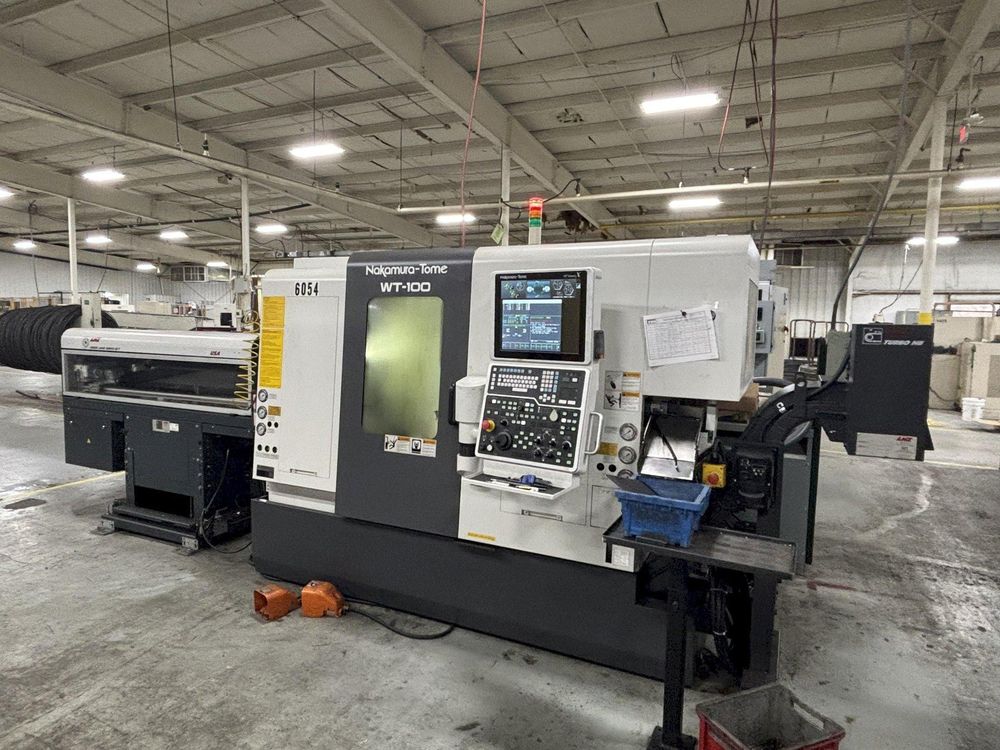

Nakamura Tome NT Smart FANUC 31i-B 6,000 rpm WT-100MMY 5 Axis

X-Axis Travel: 5.31"
Y-Axis Travel: 2.44"
Z-Axis Travel: 19.8"
B-Axis Travel (Sub Spindle): 20.6"
C Axis Index: 0.1°

CNC Control: NT Smart FANUC 31i-B
Swing: 7.48"
Turning Diameter: 7.48"
Center Distance: 28.94"
Chuck Size: 6"
Bar Capacity: 1.65"
Spindle Speed: 6,000 rpm
Main Motor: 10/15 hp
Live Tooling: Yes
Live Tooling Speed: 6,000 rpm
Sub Spindle: Yes
Sub Spindle Chuck: 6"
Sub Spindle Bar Capacity: 1.65"
Sub Spindle Speed: 6,000 rpm
Sub Spindle Motor: 10/15 hp
Turret Capacity: 12/24 2x Upper and Lower
Machine Dimensions: 103.5" x 63.9" x 76.4"
Machine Weight: 12,540 lbs

Equipped With: LNS Turbo Chip Conveyor RH Discharge
Equipped With: LNS Quick Load Servo S3
Equipped With: Can Feed Slugs as Short as 10" with Options for Shorter Parts
Equipped With: Triple Alarm Light
Equipped With: Kitagawa B206 6" Chuck - 3 Jaw
Equipped With: Royal FX575 Mist Collector - Machine Mounted
Equipped With: 2 Mill Heads New on the Shelf
Equipped With: Blaze Air Unloading System
Equipped With: Expanded Program Storage - 8MB
Equipped With: FANUC 31i-B SmartX Control
