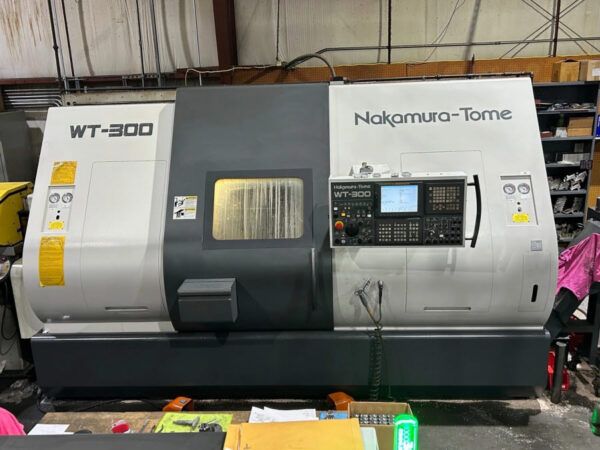

Nakamura Tome FANUC 18i-TB 7-axis CNC Manual Guide i 4500 rpm WT-300MMY 7 Axis

X1 axis travel: 7.68 in
X2 axis travel: 7.68 in
Y1 axis travel: 4.72 in
Z1 axis travel: 30.71 in
Z2 axis travel: 30.71 in
W axis travel: 33.46 in
C axis indexing: 0.001°
C axis indexing (sub spindle): 0.001°
Control: FANUC 18i-TB 7-axis CNC
Manual Guide i
Thread cutting
Continuous thread cutting
Thread cutting retract
Variable lead thread cutting package
Milling on both turrets
Synchronized Z axes
Hydraulic pressure interlock
High-pressure coolant on both turrets
300 psi through-tool coolant to milling heads
Milling spindle synchronized tapping
Polar coordinate interpolation
Cylindrical interpolation
Helical interpolation
Background edit
Extended part program editing
Graphic function
Dynamic graphic function
Swing over bed: 10.63 in
Maximum turning diameter: 10.63 in
Maximum turning length: 30.71 in
Distance between spindles: 43.31 in
Main spindle chuck: 8 in
Main spindle nose: A2-6
Main spindle bore: 3.15 in
Main spindle bar capacity: 2.5 in
Main spindle speed: 4500 rpm
Main spindle motor: 25 HP
Sub spindle chuck: 8 in
Sub spindle nose: A2-6
Sub spindle bore: 3.15 in
Sub spindle bar capacity: 2.5 in
Sub spindle speed: 4500 rpm
Sub spindle motor: 25 HP
Turret 1: 24 stations
Turret 1 rotary tool speed: 3600 rpm
Turret 1 rotary tool motor: 7.5 HP
Turret 2: 24 stations
Turret 2 rotary tool speed: 3600 rpm
Turret 2 rotary tool motor: 7.5 HP
Two 8 in 3-jaw hydraulic chucks
Automatic parts catcher
Tool presetter
12 rotary heads
Static tool holders
Chip conveyor
Machine weight: 27000 lb
