Nakamura Tome Fanuc 18i-TB CNC control 5000 RPM WT-150MMY 7 Axis

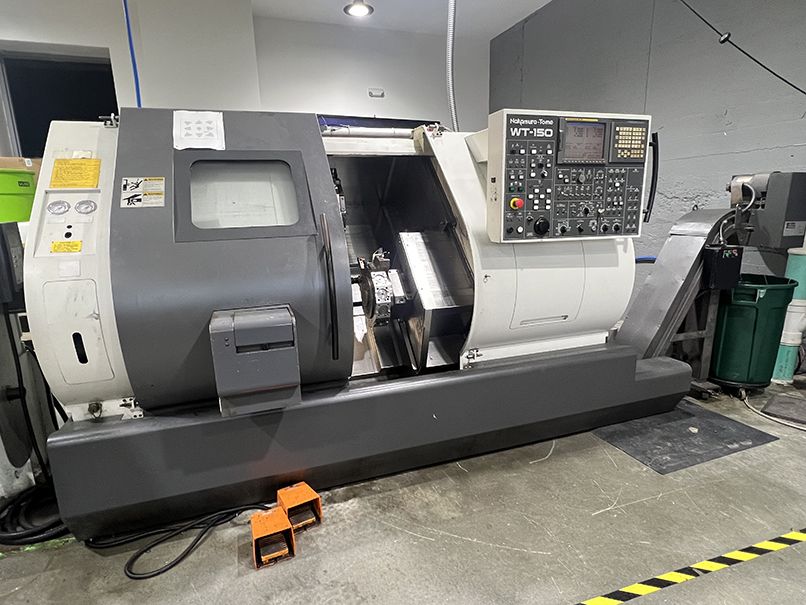

NAKAMURA-TOME WT-150MMY
Year: 2004

Bar capacity 2″
Chuck size 6″
Max turning diameter 7.48″
Max swing 7.48″
Max turning length 15.75″
Distance between spindle noses (max) 29.52″
Distance between spindle noses (min) 7.87″
X1 travel 6.2″
X2 travel 6.59″
Z1 travel 18.3″
Z2 travel 18.31″
B-axis on subspindle 21.65″
C-axis contouring (L/R spindles) 0.001°
Y-axis travel on upper turret 2.75″
Spindle nose (L/R) A2-5
Spindle speed (L/R) 5000 RPM
Turning spindle motor (L/R) 20/15 HP
Upper/lower drive motor 7.5 HP
Turret stations 12 per turret
Turret index time 0.15 sec/station
Live tooling motor 7.5 HP
Live tooling speed 3600 RPM
Machine dimensions 170″ x 86″ x 73″
Machine weight 20,000 lbs

Fanuc 18i-TB CNC control
Twin spindle
Dual turret
Live tooling
Right-hand discharge lift-up chip conveyor
Y-axis upper turret
C-axis (L/R)
8 live face drill holders
8 live cross drill holders
All available static toolholders
LNS Quick Six barfeed
