Nakamura Tome FANUC 21TB CNC 2500 RPM SC-450 2 Axis

Ref : 2725933-3-GO

Condition : Used

Manufacturer : Nakamura Tome

Controller : FANUC 21TB CNC

Spindle Speed : 2500 RPM

Model : SC-450

Nb Of Axis : 2 Axis

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

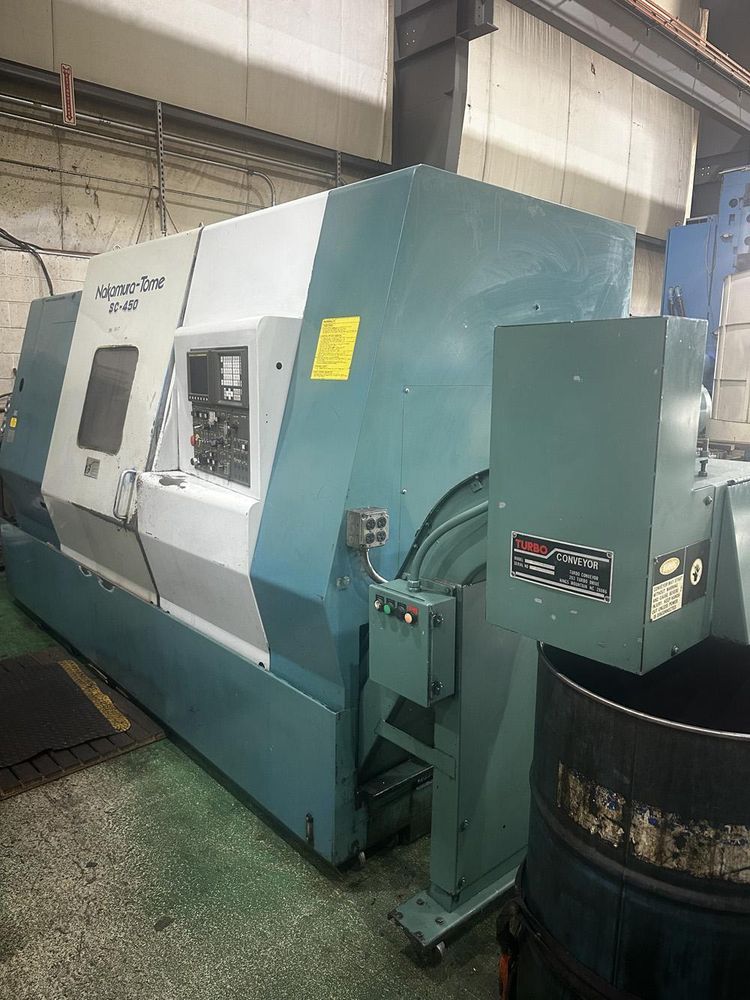

NAKAMURA-TOME SC-450

Control: FANUC 21TB CNC
Capacity: 31.88" x 40.74"
Swing over bed: 30.88"
Swing over carriage: 20.74"
Distance between centers: 40.74"
X-axis travel: 12.40"
Z-axis travel: 32.48"
Spindle speed range: 25 to 2500 RPM stepless
Spindle nose: A2-8
Spindle bore: 3.93"
Turret tool stations: 12
Spindle drive motor (50%ED / Continuous): 30 / 22 kW
Tailstock diameter: 4.72"
Tailstock stroke: 3.93"
Tailstock taper: #4 MT
Turbo chip conveyor
20" 4-jaw manual chuck
