Nakamura Tome CNC CONTROL 4,500 RPM WY 250L Super Mill 8 Axis

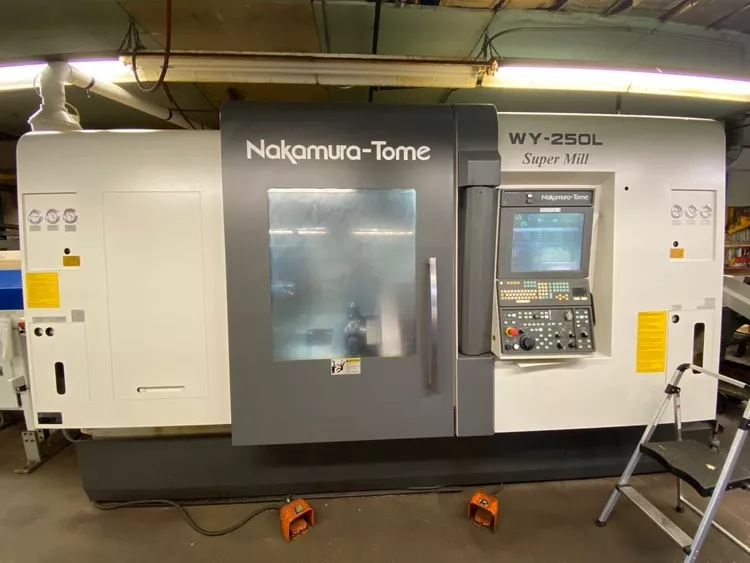

NAKAMURA-TOME WY 250L Super Mill
Year: 2014

Turning diameter: 8.8"
Turning length: 35.8"
Distance between spindles: 47.2"
Spindle nose 1: A2-6
Spindle nose 2: A2-5
Spindle bore diameter 1: 3.15"

Bar capacity 1: 2.6"
Spindle speed 1: 4,500 RPM
Spindle horsepower 1: 25 hp
Spindle bore diameter 2: 2.48"
Bar capacity 2: 2.04"
Spindle speed 2: 5,000 RPM
Spindle horsepower 2: 20 hp

X1 axis travel: 6.3"
X2 axis travel: 6.3"
Z1 axis travel: 35.8"
Z2 axis travel: 35.8"
Y1 axis travel: 2.75"
Y2 axis travel: -1.96"
C axis indexing 1: 0.00
C axis indexing 2: 0.00
W axis travel sub spindle: 37.2"

Rapid traverse rate X1: 708 IPM
Rapid traverse rate X2: 708 IPM
Rapid traverse rate Z1: 1574 IPM
Rapid traverse rate Z2: 1574 IPM
Rapid traverse rate Y1: 393 IPM
Rapid traverse rate Y2: 393 IPM

Turret tool positions 1: 24 station
Turret rotary tool speed 1: 6,000 RPM
Turret rotary tool horsepower 1: 10 hp
Turret tool positions 2: 24 station
Turret rotary tool speed 2: 6,000 RPM
Turret rotary tool horsepower 2: 10 hp

Machine weight: 28,661 lbs
Control: FANUC 31I-B 2-Path CNC color control
Short magazine barfeed
Chip conveyor
Tool presetter
AI contour control
Manual guide multi path
Pitch error compensation
Graphic function
Registered programs expansion 1
Y axis offset
Tool geometry/wear offset
Tool offset 200 pairs
Arbitrary angular axis control
Chamfering / corner B
Custom macro B
Direct drawing dimension
Constant surface speed control
Thread cutting retract
Embedded Ethernet
Spindle polygon function
Unexpected disturbance detection function
Balance cutting
Variable lead thread cutting
