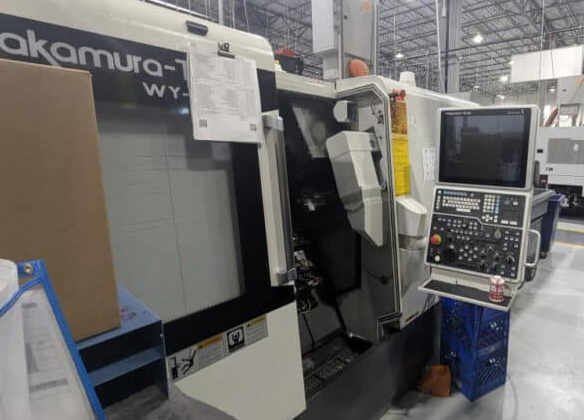

Nakamura Tome Control Fanuc 31i-B CNC 4500 RPM -WY-150 9 Axis

X Axis Travel 6.31 in
X2 Axis Travel 6.31 in
Z Axis Travel 22.25 in
Z2 Axis Travel 22.25 in
Y Axis Travel 3.54 in
Y2 Lower Turret Travel 2.75 in
B Axis Travel (Sub Spindle) 25.63 in
C1/C2 Axis Index 0.001°

Control Fanuc 31i-B CNC
Upper Turret 12 Station Bolt-on
Lower Turret 12 Station Bolt-on
Live Tooling Yes
Live Tooling Speed 6,000 rpm
Live Tooling Motor 7.5 hp

Main Spindle Motor 20/15 HP
Main Spindle Speed Range 45 – 4500 RPM
Main Spindle Nose A2-6
Main Spindle Hole Through 3.15 in
Main Spindle Hole Through Draw Tube 2.5 in

Max Torque Left Spindle 103.4 lbs-ft
Left Spindle Bar Capacity 2.5 in
Left Spindle Chuck Size 8 in
Max Turning Diameter 8.85 in
Standard Turning Diameter 5.91 in
Max Turning Length 22.24 in

Sub Spindle Motor 20 HP
Sub Spindle Speed 45 – 5000 RPM
Sub Spindle Nose A2-5
Sub Spindle Hole Through 2.6 in
Sub Spindle Hole Through Draw Tube 2.0 in
Sub Spindle Bar Capacity 2 in
Sub Spindle Chuck Size 6 in

Max Turn Diameter 8.85 in
Standard Turn Diameter 5.91 in
Max Turn Length 22.24 in
Parts Catcher Type G for Sub Spindle
Max Parts Length 6 in
Max Parts Weight 6.6 lbs
Y Axis Upper Turret +/- 1.77 in
Y Axis Lower Turret +/- 1.37 in
NT Navigator
NT Nurse System
Luck Bei Color Graphics Conversation Programming 3D-Smart Pro
Manual Tool Setter
Rigid Tapping Left and Right Spindles
Work Navigator
Helical Interpolation
Coolant Thru Spindle
Additional Rotary Union
Chip Conveyor
ChipBlaster GV2-80 2 Port 1500 PSI
LNS Quick Load Servo 80 S2 Bar Loader
Mist Collector
Machine Size 152" x 85" x 85"
Weight 23,153 lbs
