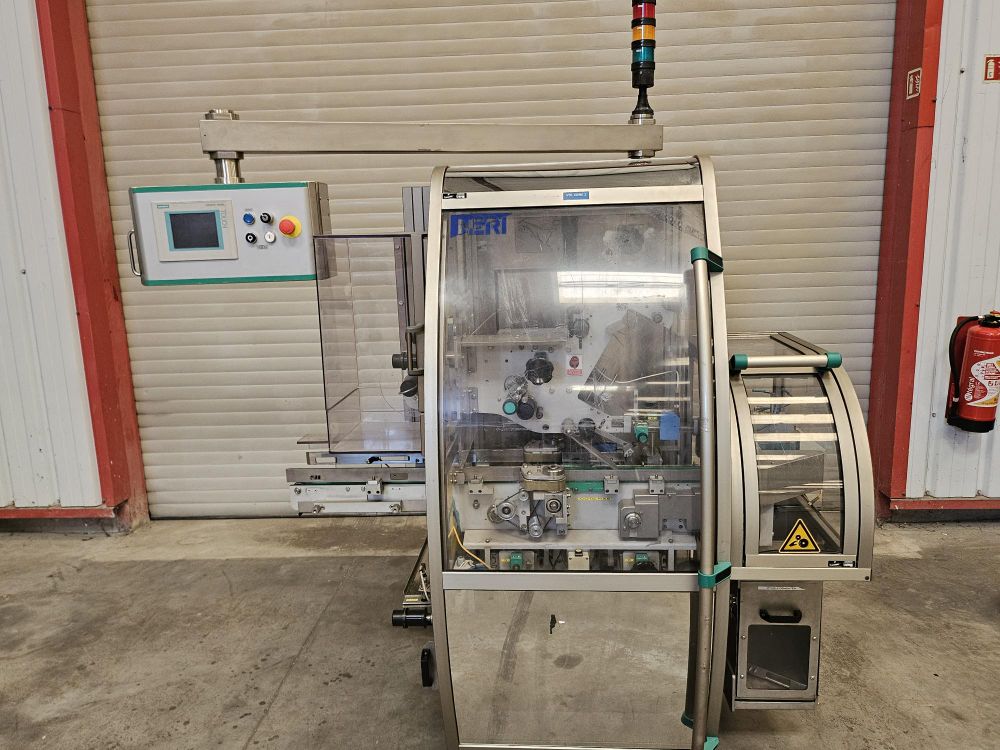

Neri BL 400 VXL

Labeler adhesive label for cartons with 2 tamper evident labeling stations

Weight : 700 kg
Dimensions : (L x W x H) 2.10 x 1.70 x 2.30 M

Equipped with:
PVC belt conveyors for advancing cartons to the cleated conveyor.
Cleated conveyors for transferring cartons to the labeling stations from above the carton.
Label advancement "step" detection by cell.
Carton detection by cell.
Cylinder-operated control and ejection station if the label is missing.
Conveyor with two side belts for exiting finished cartons.
Power cabinet with new "Omron" PLC.
Control panel with touchscreen.
General drive by motor-variator.
Protective casings.
Stainless steel chassis.

Maximum capacity:
Case dimensions:
Minimum length: 70 mm - maximum: 200 mm
Minimum width: 20 mm - maximum: 180 mm
Minimum height: 15 mm - maximum: 120 mm

Label dimensions:
Minimum length: 15 mm - maximum: 80 mm
Minimum height: 20 mm - maximum: 60 mm

Maximum production:
approximately 400 cases/minute depending on case dimensions
Total electrical power: 2 kW
Maximum compressed air pressure: 6 bar
