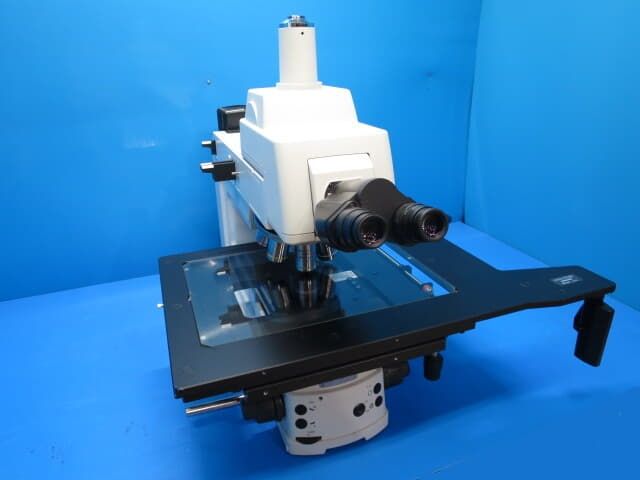

Nikon L300D

Large Circuit Board Inspection Microscope

Specifications
Observation Method: Brightfield,
Darkfield, Differential Interferometry
Stage Stroke: 14x12 inches (350x300mm)
Total Magnification: 50, 100, 200, 500, 1000x
Microscope Tube: Trinocular Depression Tube L2-TT2
(Adjustable Eyepiece Angle, Camera Optical Path 0-100, 80-20)
Eyepiece: CFI UW 10x, Field of View 25
Illumination: 12V, 100W (Transmitted, Reflected)
Objective Lens: LU Plan 5, 10, 20, 50, 100x
BD Other: Motorized (Revolving Nozzle, Reflected Illumination Path Aperture)
Stage: Large Glass Plate Included

Equipment Status
・Instruction Manual Included
