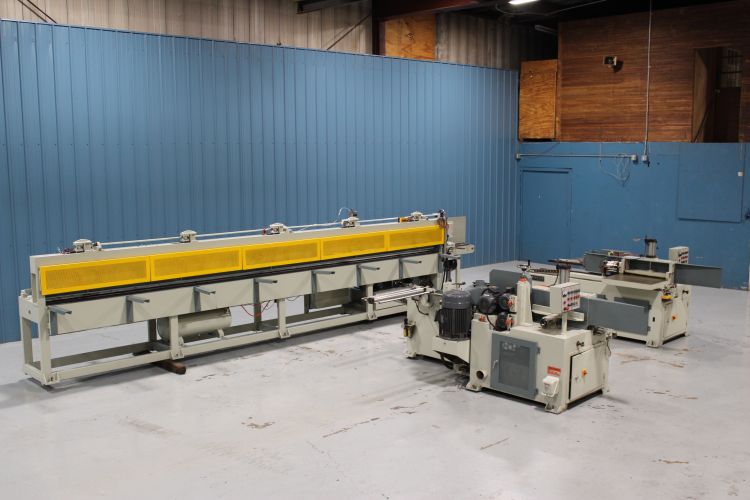

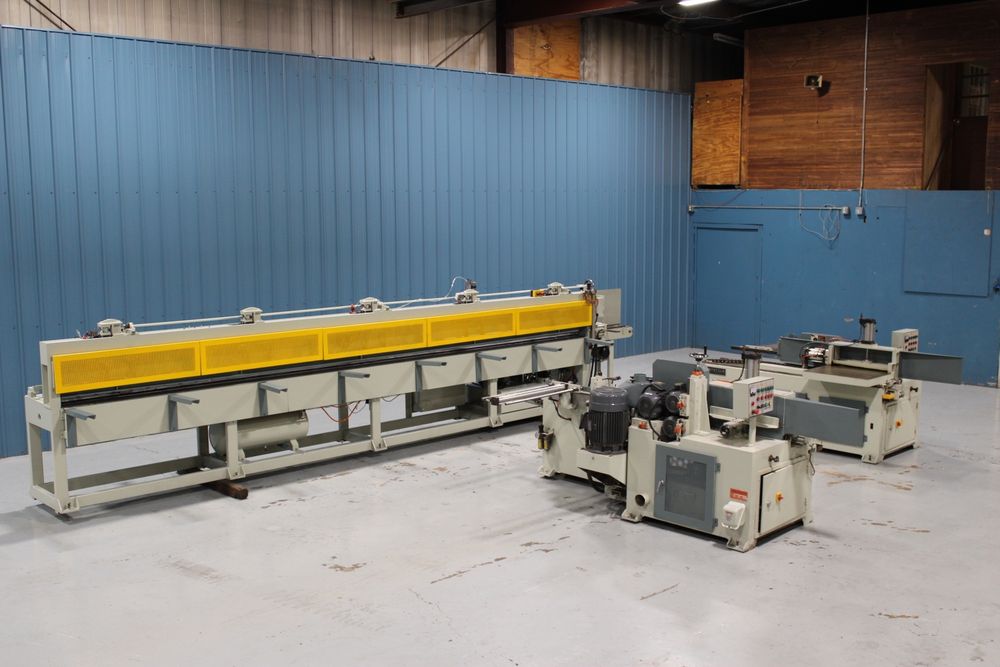

Northtech NT25RSMA and NT-20AH-HA Finger Jointer Shapers and Assembler

Finger Jointer System w/ Model NT-25LS-HA Left Shaper, NT-25 RS-HA Right Shaper, Glue System, and NT-20AH-HA Pressing Station
Left Hand Shaper Unit includes 20 HP Shaper, 7.5 HP Saw Motor, 1 HP Bottom Scoring Motor, and a Pusher Cylinder to Send Parts Away
Right Hand Shaper Includes 20 HP Shaper, 7.5 HP Saw Motor, and Top & Bottom Scoring Motors and Glue Application Head
Shapers have 29" x 28" Tables
50mm Diameter Shaper Spindles
Maximum Length X Height of Workpiece 40" x 6"
Minimum Length X Height of Workpiece 6" X 0.8"
Model NT-20-AH-HA Finger Joint Press
Pressing Length: 20'
Cut-Off Saw to Cut Pieces to Length. Saw Motor: 3 HP
Hydraulic Press Feed with 7.5HP Motor
Pneumatic Top & End Pressure
All Units Include Push-Button Controls
