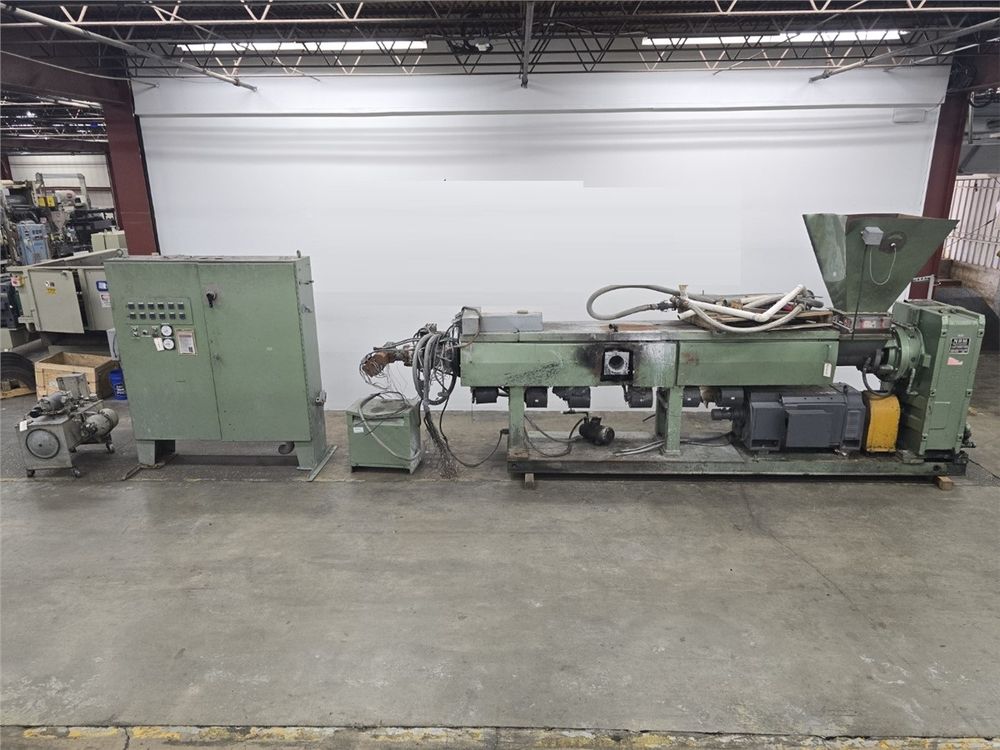

NRM 4.5" Extruder

4.5" NRM Single Screw Extruder, 34:1 L/D, 300 HP DC Motor With Blower
Air Cooled Vented Barrel, 6 Barrel Zones, 6 Downstream Zones
9" x 13" Tangential Jacketed Water Cooled Feed Throat
With Metal Separator
Approx. 41" Centerline Height
300 HP DC Motor
500V, 536A
STATOHM Model: DC42NM-3-4 DC Drive Rated For 460/3/60, 550A,
New in 2014
13.35:1 Gearbox Ratio
Machine Nameplate: 460/3/60
Tempco TEC-9100 Temp Controllers, Gefran Digital Dual Channel Indicator, Motor On/Off, Vacuum Controls, Speed Pot, Dae Boong Tachometer & Ammeter
Industrial Magnetic Feed Throat Separator
Beringer Screen Changer With Hydraulic Power Unit
24 Hole Strand Die
500 AMP Square D Main Disconnect WIth Surge Suppression
Sold As-Is, Has Water Cooled Heater Bands with Air Cooling Fans
Approximate Extruder With Die Strand Dimensions: 20 Ft Long x 60" W x 95" H
Approximate Control Cabinet Dimensions: 84" L x 38" x 84" H
Approximate Hydraulic Unit Dimensions: 36" x 35" x 37" H
