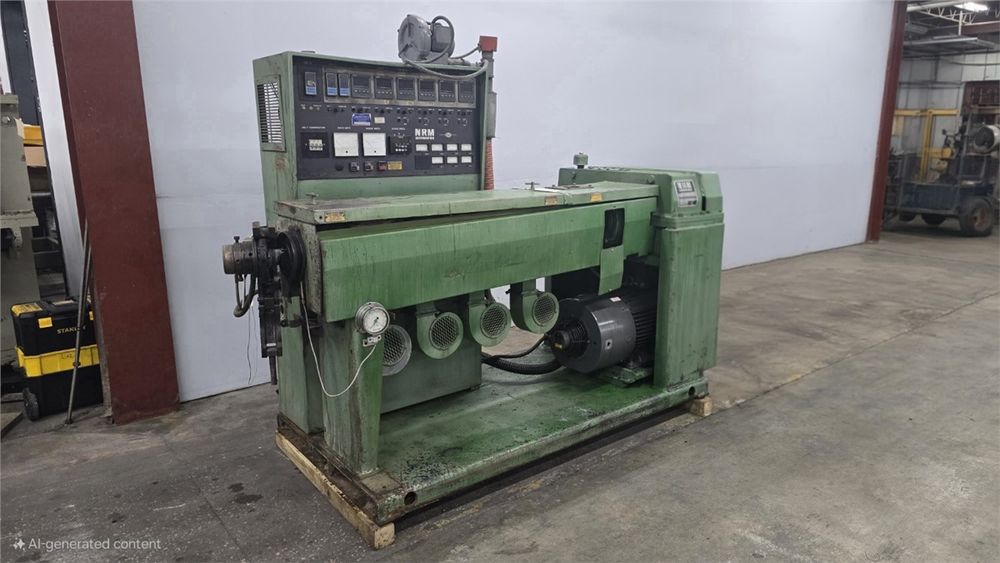

NRM PM III Extruder

2.5” NRM PM III Extruder, 24:1 L/D, 40 HP AC Motor
Single Screw, Air Cooled, Non-Vented, 4 Barrel Zones, 4 Die Zones
Feed Throat: 3.5" x 3.5", Water Cooled
40 HP Baldor Reliance Inverter-Duty AC Motor,
Model: IDM411OT
460/3/60, 47A
1775 RPM, Max RPM: 3900
Frame: 324T
NRM Gearbox, Gear Ratio: 16.95:1, Screw RPM: 105
40 HP Toshiba VF-AS1 VFD
Input: 240/3/60, 124A
Output: 240V, Frequency Range: 0.01–500 Hz (CF 4 kHz),
Rated Output Current: 124 A, Rated Torque: 41 Nm
150A Main Disconnect
West/JCR Digital Temp Controllers, Analog AC Amp Gauges,
Toshiba Digital Screw Speed Readout,
With Analog Pressure Transducer Gauge
Approximate Dimensions: 116" L x 50" W x 84" H
