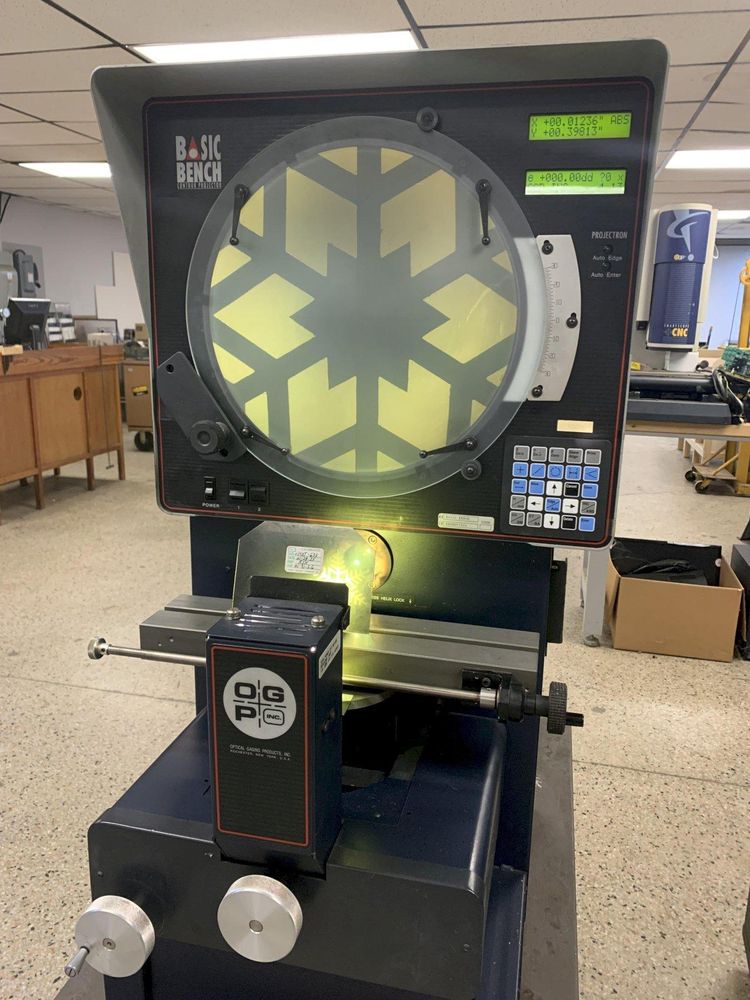

OGP (Optical Gaging Products) Basic Bench

Screen diameter - 14"
Table size - 4.3" x 17.8"
Horizontal measuring travel - 8"
Vertical measuring travel - 5"
Focus adjustment - 1.5"
Table load capacity - 45 lbs
Electrics - 1/60/115 VAC
Dimensions - 33" L-R x 22½" F-B x 41" H
Net weight, approx - 315 lbs
Shipping weight, approx - 500 lbs
Built-in LCD displays
Geometric measuring processor
0.00004" resolution scales
Projectron internally mounted automatic edge detection
Screen rotation protractor
Work table helix motion
Quick release X-axis travel
Square on surface illumination
Under screen Fresnel lens
Vertically corrected image
3-position lens turret
10X lens
20X lens
50X lens
Operation and maintenance manual
Optional stand available
