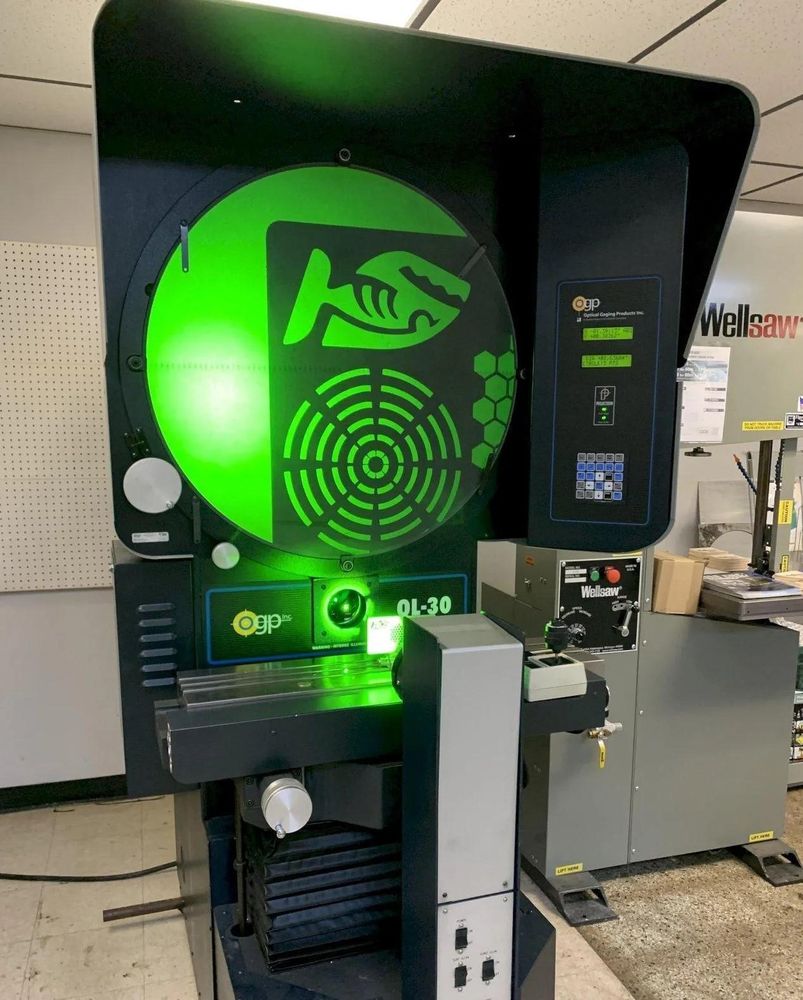

OGP (Optical Gaging Products) QL30

Screen diameter: 30"
Table size: 8" × 32"
Table horizontal travel: 15"
Table vertical travel: 9"
Table helix adjustment: ±15°
Focus adjustment: 3"
Constant working clearance: 8.4"
Collimator to focal plane: 10"
Throat clearance: 18.4"
Table load capacity: 550 lbs
Power requirements: 115 VAC / 50–60 Hz / 1 phase
Machine dimensions: 71" FB × 42" LR × 80" H
Machine net weight: 1700 lbs

OGP geometric measuring processor / digital readout system
0.00004" resolution scales
Projectron internally mounted edge detection
Digital angle display
Power table travels with joystick control
Power lens turret (lenses pending)
LED projection lighting
Mercury arc surface illumination
Unreversed image
Operator manual (.pdf)
