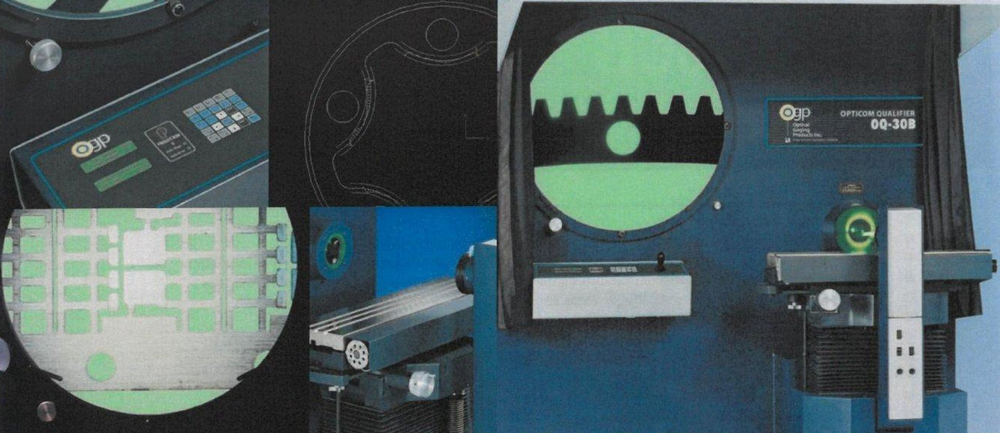

OGP (Optical Gaging Products) OQ30B

Screen Size: 30" Diameter Viewing Area
Table Size: 8" x 32"
Horizontal Measuring Range: 15"
Vertical Measuring Range: 10"
Focus Travel: 3"
Screen Rotation: 360°
Table Load Capacity: 550 lbs
Working Clearance: 10.4"
Throat Clearance: 21.1"
Scale Resolution: .00004"
Electrics: 115 VAC
Machine Dimensions: 72" W x 89-3/4" L x 77-3/4" H
Weight: 4,000 lbs

Side Screen Design
OGP Geometric Measuring Processor DRO
Digital Angle Display
Projectron V Automatic Edge Detection
Motorized Lens Turret
Motorized Table Travels
Joystick Control
Mercury Arc Projection
Surface Illumination
Overhead Visor
Curtains
Operation Manual
