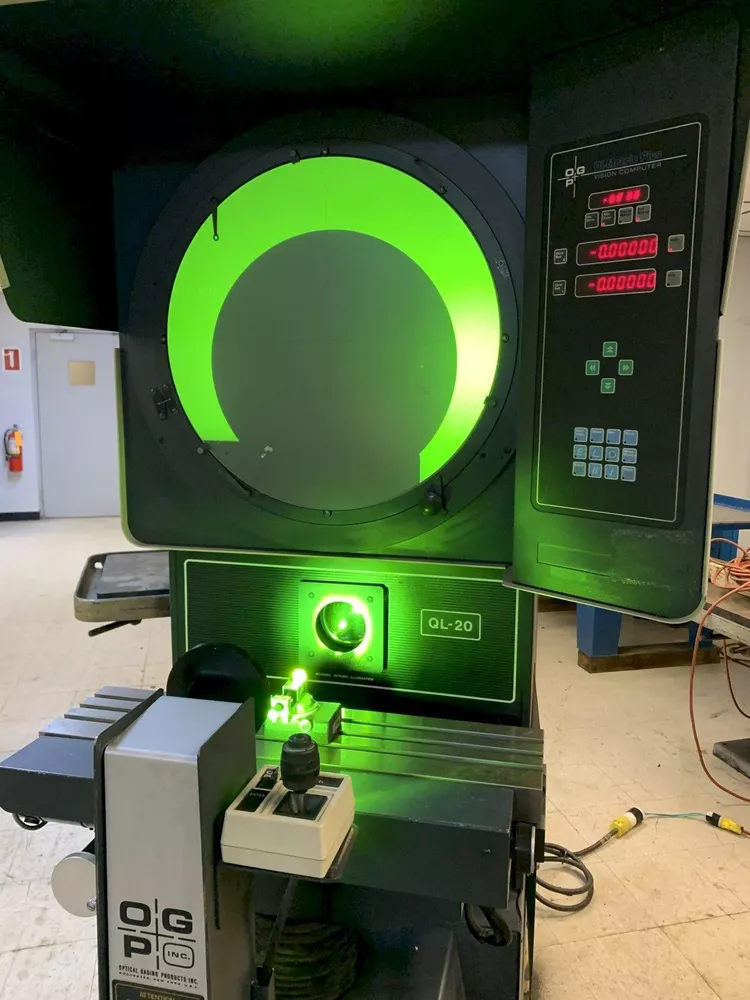

OGP QL20

Screen diameter: 20"
Table size: 32" × 8"
Table horizontal travel: 15"
Table vertical travel: 9"
Focus adjustment: 3"
Table load capacity: 550 lbs
Throat clearance: 18-3/8"
Working distance (focal plane to front relay lens housing): 8-3/8"
Collimator to focal plane: 10"
Electrics: 1/60/115 VAC, 22 A
Approx dimensions: 67" FB × 38" LR × 75" H
Approx net weight: 1600 lbs
DiMetric Plus geometric digital readout
0.00005" resolution scales
Projectron III edge detection
Digital angle display
Power table travels with DC servos and joystick control
Power lens turret
3 lenses: 10×, 20×, 50×
Mercury arc projection
Mercury arc surface illumination
Fully corrected images
All necessary manuals
