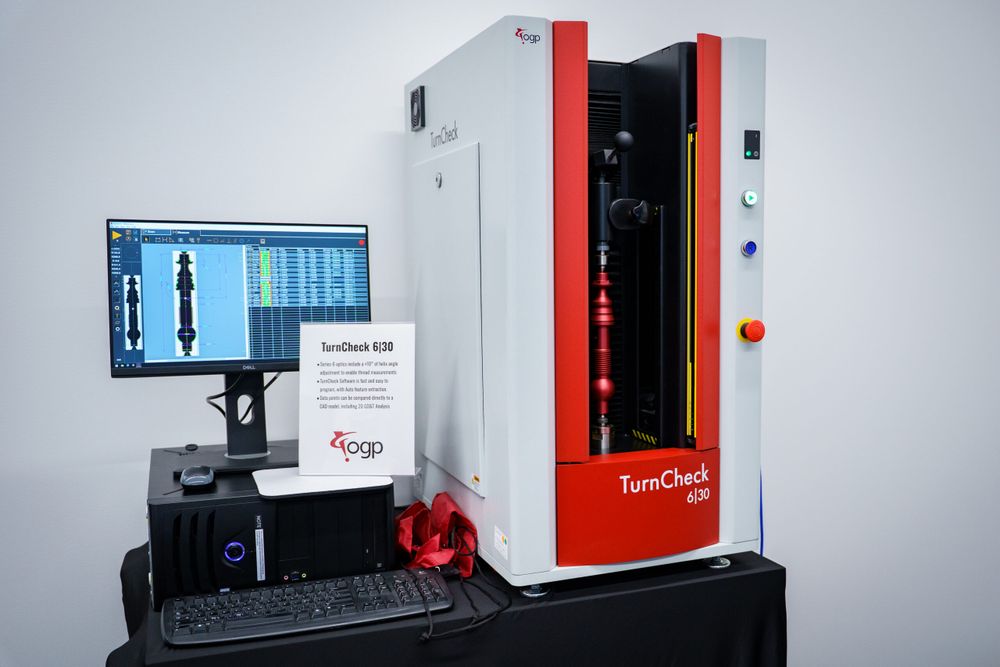

OGP TurnCheck 6|30

High-performance benchtop shaft measurement system manufactured in 2022.
This machine has been kept in a showroom environment.
It has been well maintained and comes with a computer,
monitor, keyboard, and easy-to-use TurnCheck software.

Specifications
Accuracy
Diameter Measurement: 1.8 + D/100 µm
Diameter Repeatability: 1.0 µm
Length Measurement: 3.5 + L/150 µm
Length Repeatability: 3.0 µm
Measuring Range
Vertical: 300 mm
Diameter: 60 mm
Maximum part size: 170 ⌀ mm x 300L mm

Includes
Helix Motion for Thread Measurement
+/- 15 degrees of movement for the optics about the part to properly check
features such as thread profiles
