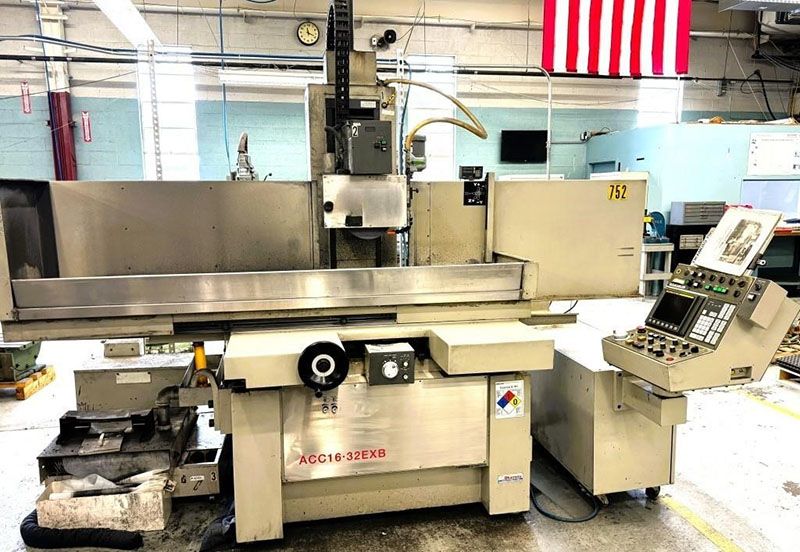

Okamoto ACC-16-32-EXB

Nominal Grinding Capacity 16" x 32"
Maximum Height under 12" Wheel 21.5"
Table Speed, Infinitely Variable 3' to 82' FPM
Longitudinal Table Handfeed per Revolution 1.85"
Maximum Longitudinal Table Movement, Manual 37.4"
Auto Cross Feed Increment 0.02" to 0.80"
Auto Continuous Crossfeed 0.010 to 40' FPM
Crossfeed per Revolution (X1, X5, X20) 0.01", 0.05", 0.2"
Graduation of Handwheel (X1, X5, X20) 0.0001", 0.0005", 0.002"
Maximum Crossfeed, Manual 13.5"
Auto Incremental Downfeed (10) 0.00005" to 0.0015"
Sparkout Passes 0 to 5
Power Rapid Wheel Positioning Rate 40" IPM
Manual Pulse Feed (X.1, X1, X10) 0.00001", 0.0001", 0.001"
Spindle Motor 5 HP
Wheel Size 12" x 1.5" x 5"
Approximate Dimensions for Operation 108" x 82"D x 95"H
Approximate Machine Weight 6,160 lbs
FANUC MDI/CNC Control with 9" CRT Display
Hydraulic Table Traverse
12" x 24" Fine-Division Electro-Magnetic Chuck
Variable Hold Neutrofier Control & Demagnetizer
Coolant System with Paper Separator
Oil Temperature Regulator System
Spindle Motor 5 HP
Machine Wired for 3/60/460 Volts
