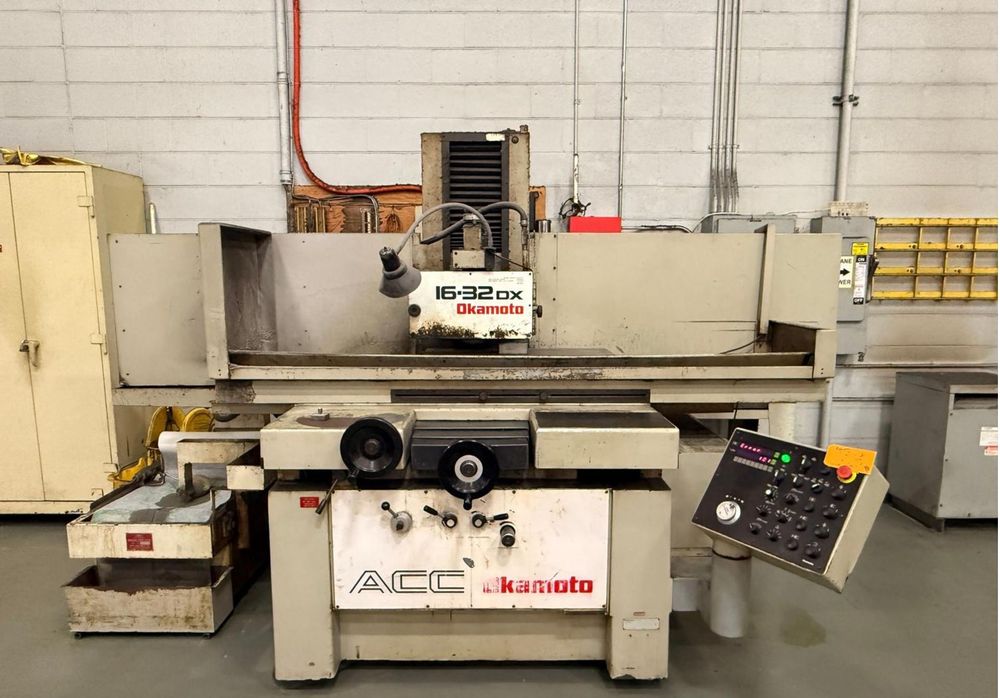

Okamoto ACC-1632DX, 2021 Upgraded PLC & Control

Grinding capacity 16" x 32"
Maximum height under standard 12" wheel to table surface 21.5"
Table speed infinitely variable up to 82 FPM
Max longitudinal table movement, manual 38"
Auto cross feed increment 0.002" to 0.80"
Auto continuous crossfeed 4' to 40' FPM
Crossfeed, manual, hand feed per rev 0.25"
Grad. of handwheel 0.001"
Max crossfeed, manual 18"
Auto incremental downfeed increments 0.00005" to 0.0015"
Power rapid wheel positioning rate 16" IPM
Spindle motor 5 HP
Hydraulic pump motor 3 HP
Vertical rapid feed & downfeed motor 0.5 HP
Wheel size 12" x 1.5" x 5"
Wheel speed 6,500 SFPM
Grinding wheel speed 1,800 RPM
Machine weight 8,800 LBS
Machine floor space (L x W x H) 132" x 87" x 82"
Hydraulic table traverse & automatic crossfeed
Programmable electronic auto incremental downfeed
Servo driven downfeed
Auto incremental downfeed for surface & plunge operations
Dual rate auto downfeed with coarse & fine selections
Digital display for vertical axis
Sparkout passes 0 to 5 with auto table park at completion of grind cycle
Electronic handwheel for manual vertical movement with each grad. equivalent to 0.00001", 0.0001" or 0.001"
Power rapid wheel positioning
Wheel retraction
16" x 32" fine-division electromagnetic chuck
Variable hold chuck control
Power over-the-wheel dresser with micrometer adjustment
Coolant system with motorized paper filtration
3/60/230-460 volt electrics, rated 8.5 KVA
Upgraded in 2021 with new PLC & control
