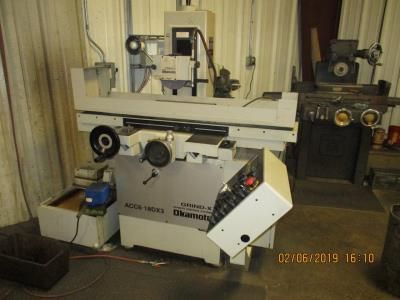

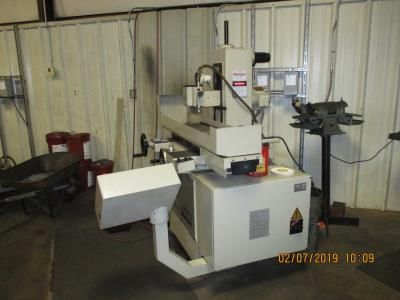

Okamoto GRIND-X ACC6-18DX3

Okamoto GRIND-X ACC6-18DX3
2014

Surface Grinder
Recip. Table

Table Work Surface 6” x 20”
Max Table Movement 20.8” x 6.9”
Max Distance btwn Wheel & Table 11.7”

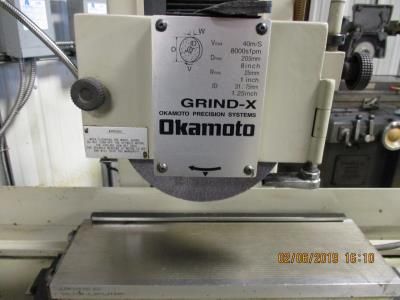

Grinding Wheel Size 8” x 1” x 1.25”
Grinding Wheel Speed 3,480 RPM
Grinding Wheel Motor 2 H.P
Table Longitudinal Feed Rate 0.33 ~ 66 ft./min
Feed Per Hand Wheel Revolution 4”
Automatic Intermittent Feed 0.004” – 0.2”
Automatic Grinding Feed 0.5 ~ 13.1 ft./min
Wheel Vertical Feed (Downfeed Increment) 0.00005” – 0.0015”
Wheel Vertical Feed (Spark Out Passes) 0 – 5 Times
Rapid Vertical Feed 15.7 Inches/min

Equipped With:

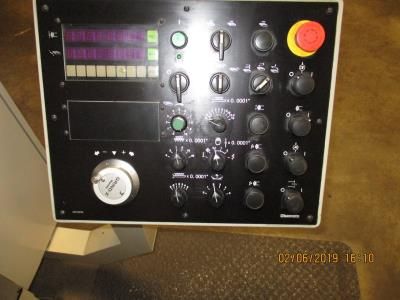

Okamoto FX Control

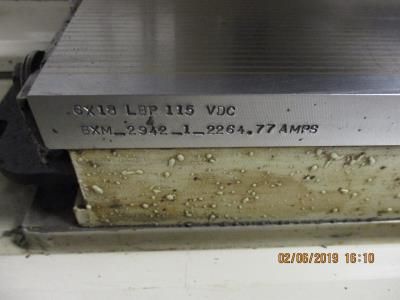

WALKER 6” x 18” LBP Fine Pole Electro-Magnetic Chuck
Microfeed Dial on Cross Feed (OPTION PURCHASED)
Coolant System with Magnetic Separator
