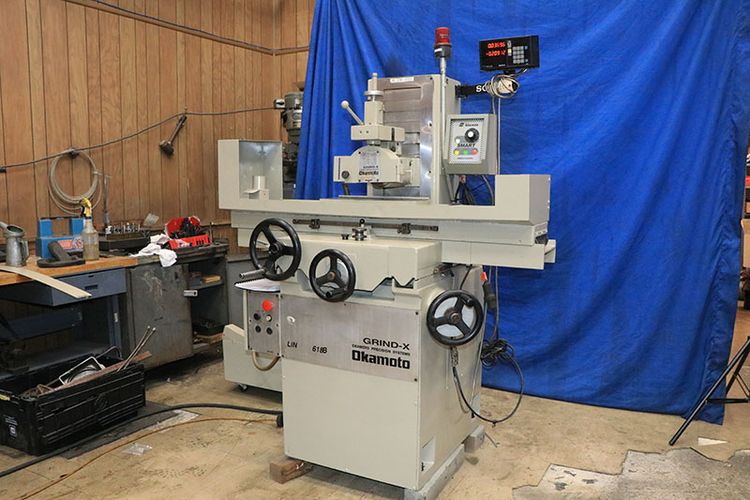

Okamoto LINEAR 618B

Nominal Grinding Capacity: 6" x 18"
Table to Underside of 8" Grinding Wheel: 14.27"
Maximum Longitudinal Table Travel: 20.87"
Maximum Cross Travel: 8.27"
Movement per Handwheel Revolution - Table: 5.12"
Movement per Handwheel Revolution - Saddle: 0.1"
Saddle: 0.05"
Handwheel Graduation: 0.0001"
Spindle Motor: 2 HP
Grinding Wheel Speed: 3450 RPM
Wheel Size: 8" x 1/2" x 1-1/4"
Approx. Dimensions for Operation: 76.5" x 55.3" D x 68" H
Approx. Machine Weight: 2,070 lbs

Sony LG-10 2-Axis Digital Readout Display, reads to 0.00002"
6" x 18" Walker "LBP" Fine-Division Electro-Magnetic Chuck
O.S. Walker "Smart Series" Variable Hold
Neutrofier Chuck Control
Wet Grinding Capable, with Coolant System & Guarding
Recirculating Automatic Lubrication System
Wired for 220 Volts
Meehanite Cast Iron, Heavy Duty Construction
Smooth Table Movement through Belt Drive
Table Glides on Linear Ball Bearings
2 HP Direct Drive Spindle, 3/60/220-230-440-460 Volts
