Okuma MU-4000V

Ref : 32345
Condition : Used
Manufacturer : Okuma
Model : MU-4000V
Nb Of Axis : -
Year(s) : 2018
Quantity : 1
Location : Seller or machines location:
United States (USA)

Reference #32345

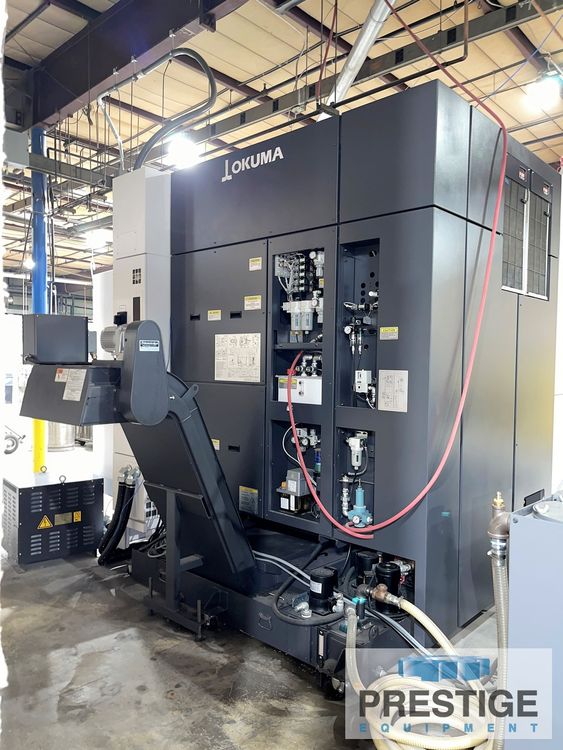

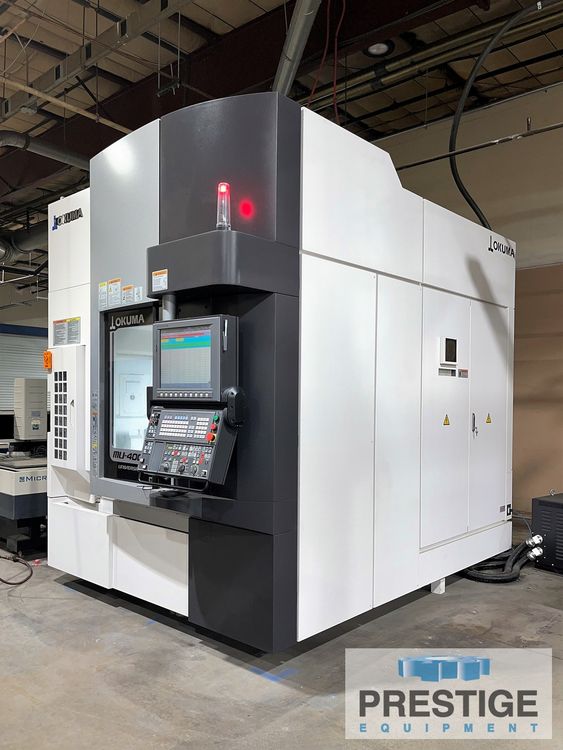

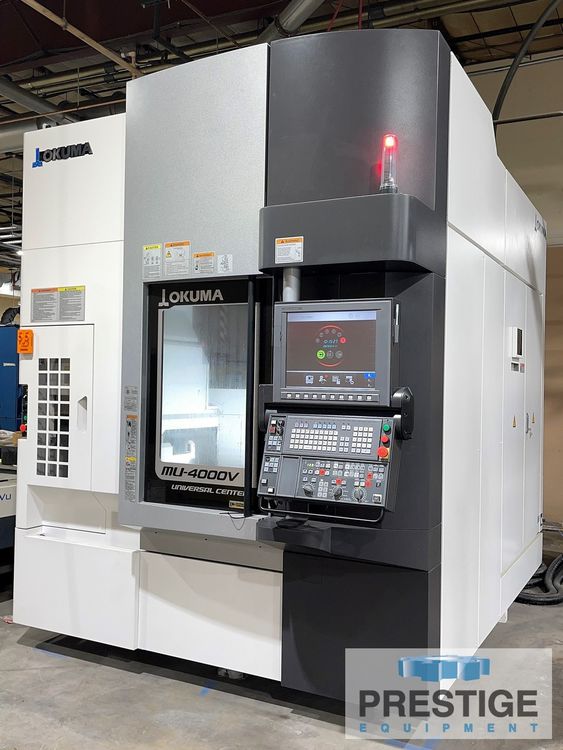

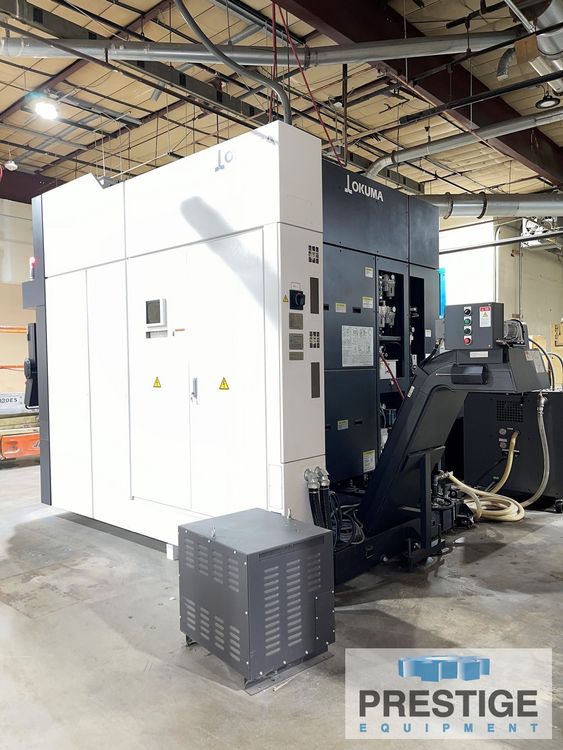

Okuma MU-4000V 5-Axis CNC Universal Machining Center

FEATURES:

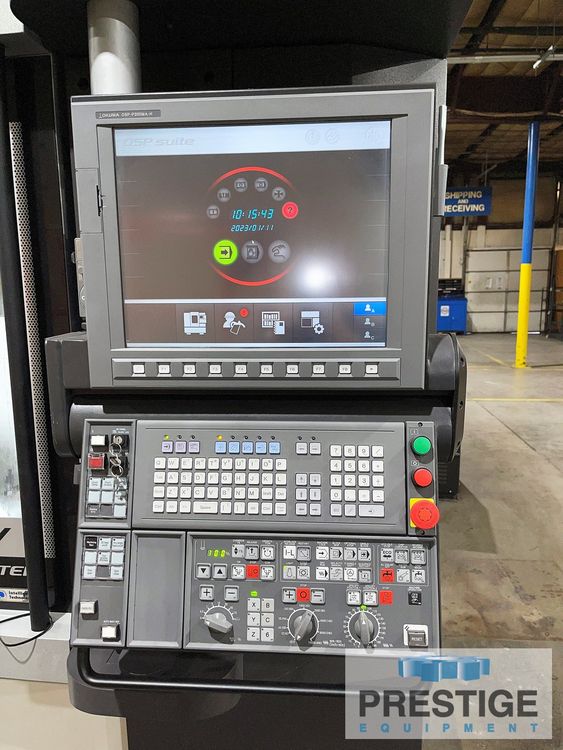

Okuma OSP-P300MA-H CNC Control

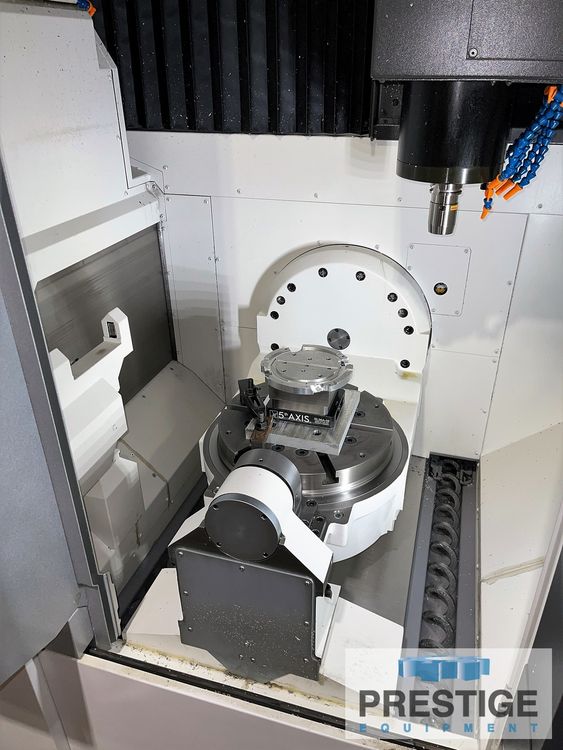

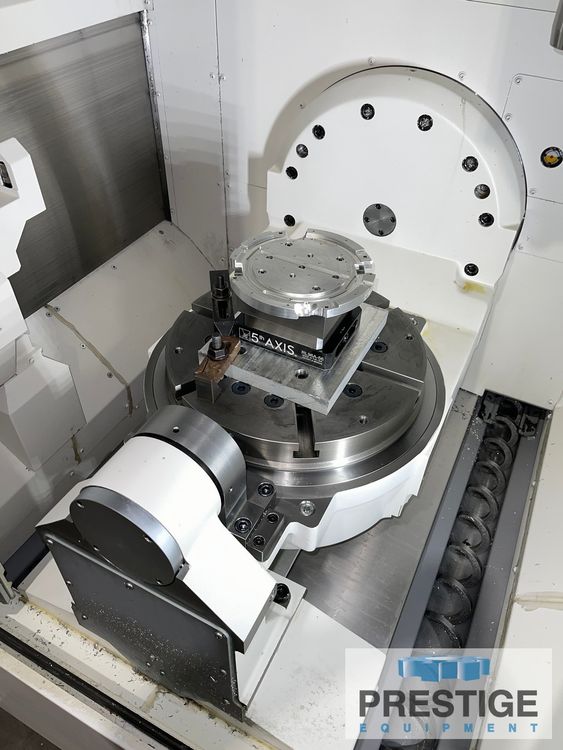

15.75" Trunnion Table

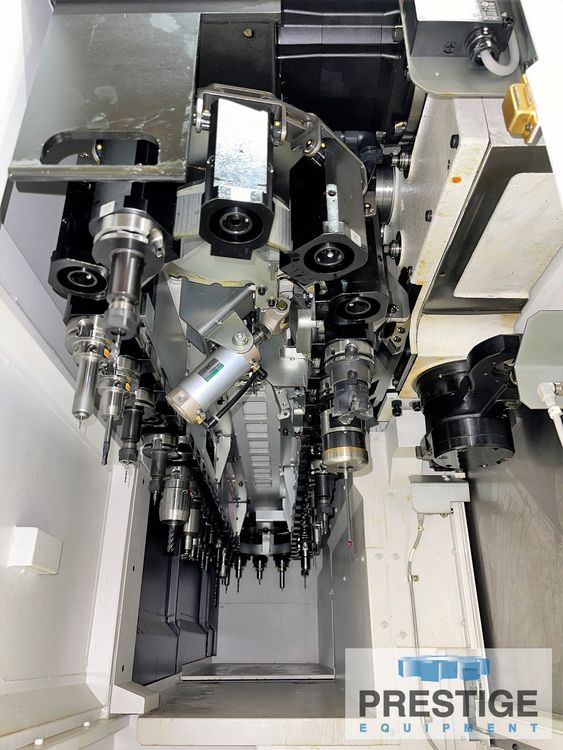

48-Position Automatic Tool Changer
Tool Wear Compensation
High Pressure Coolant (1000 PSI)
Renishaw NC4 Tool Setter
Renishaw Auto Gauging RMP600

CAPACITY:
X-Axis Travel ......................... 29.13"
Y-Axis Travel ......................... 18.11"
Z-Axis Travel ......................... 18.11"
B-Axis (Trunnion Rotation) ............ +90/-120 Deg.
C-Axis (Table Rotation) ............... 001. degrees
Table Surface to Spindle Nose ......... 4.72"-22.83"
Table Size ............................ 15.75" Diameter
Maximum Load Capacity ................. 660 Lbs.

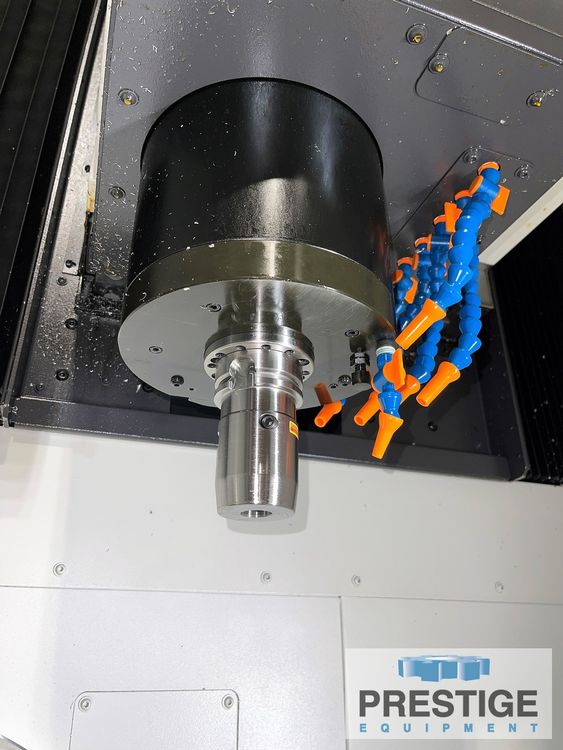

Spindle Speeds ........................ 20,000 RPM
Spindle Taper ......................... HSK-A63
Rapid Traverse (X/Y,Z Axes) ........... 1,969 IPM
Cutting Feed Rate (X/Y/Z Axes)......... 1,968 IPM
Spindle Motor ......................... 30 HP/25 HP
Approximate Dimensions ................ 95" x 128" x 118"
Approximate Weight .................... 21,500 Lbs.

EQUIPPED WITH:
Okuma OSP-P300MA-H CNC Control
15.75" Trunnion Table
48-Position Automatic Tool Changer
Tool Wear Compensation
High Pressure Coolant (1000 PSI)
Shower Coolant
Renishaw NC4 Tool Setter
Renishaw Auto Gauging RMP600
Air Blow Adapter
Spindle Jacket Cooling System
Oil Air Mist Spindle Bearing Lubrication
Chip Air Blower, Nozzle Type and Through Air Blow During Spindle Rotation
Thermo Active Stabilizer
Absolute Scales (X,Y,Z)
Ballscrew Nut Cooling (X,Y,Z Axes)
3D Tool Offset
Collision Avoidance System
Simultaneous 5-Axis Kit
5-Axis Auto Tuning System
MP Systems 36,000 BTU Chiller
MP Systems 1,200 CFM Mist Collector
MP Systems Wash Down System

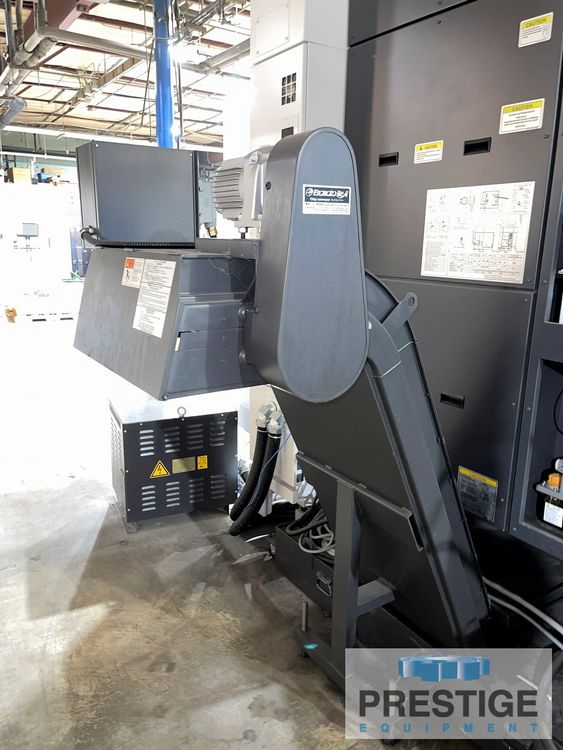

Chip Conveyor
Loaded with Tooling

NOTE:
Like New, Less than 100 hours!!
