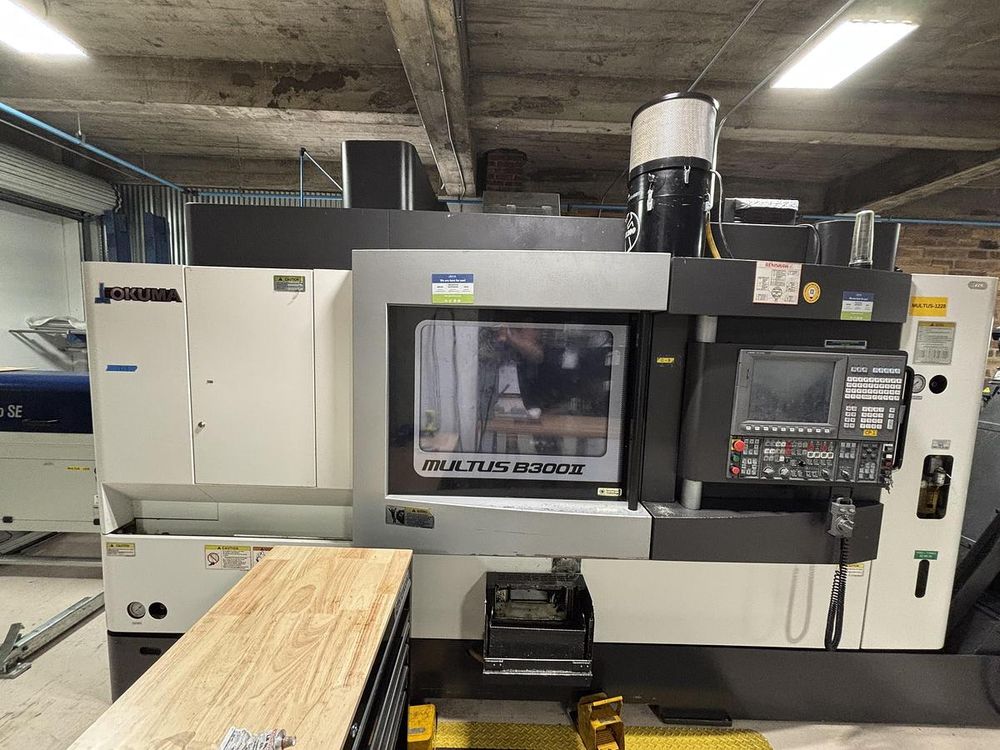

Okuma MULTUS B300II 5 Axis

X-axis travel 22.83″
Y-axis travel ±3.15″
Z-axis travel 35.51″
W-axis travel 39.37″
B-axis travel 30° to +195°
B-axis indexing 0.001°

OSP-P300S control
Tool presetter
Parts catcher
Edge Rebel 102 bar feeder
Spindle liners
Hinge type chip conveyor
MP Systems 1000 PSI coolant thru spindle
Royal Filtermist FX1200 mist control unit
Coolant tanks with flood pumps
Chiller unit
Transformer
Renishaw tool probe RMI-Q

Swing over saddle 24.8″
Distance between centers 35.43″
Big bore option 3.15″ bar capacity

Main spindle chuck size 10″
Main spindle speed 5,000 RPM
Main spindle power 30 HP
Main spindle nose A2-6
Main spindle bore 3.93″
Main spindle bar size 3.15″

Sub spindle chuck size 8″
Sub spindle speed 6,000 RPM
Sub spindle power 15 HP
Sub spindle bore 3.94″
Sub spindle bar size 3.15″

Milling spindle speed max 12,000 RPM
Milling spindle taper Capto C6

ATC capacity 120

Royal collet chuck on main spindle
Various Capto C6 tooling

Machine size 142.52″ x 87.01″ x 101.66″
Machine weight 17,820 lbs
