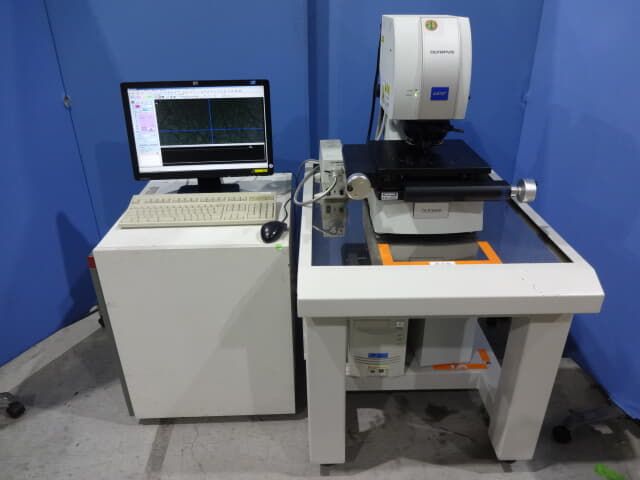

Olympus OLS3000

Main Unit: OLS30-SU
Light Source: 405nm Semiconductor Laser
Detector: Circular Pinhole + Photomultiplier
Z Drive: Revolving nosepiece
(for measurement, movement resolution 0.01um, stroke 10mm)
Coarse manual movement (for alignment, with fine adjustment handle, stroke 70mm)
AF: Laser reflection type
Stage: OLS30-CS100, manual stage, stroke 100×100mm
Revolving Nozzle: 5-hole motorized revolving nosepiece
Objective Lenses: UMPlanFL×5 BD, UMPlanFL×10 BD, UMPlanFL×20 BD
MplanApo×50 BD, MplanApo ×100
Weight: Microscope body approx. 50 kg, controller 9 kg,
PC approx. 10 kg, vibration isolation table approx. 200 kg
Dimensions: Approx. W660 × D880 × H1230
(including vibration isolation table, PC workbench excluded)
Power Supply: AC100V 50/60Hz (controller 2A, light source 3A, PC, monitor)
Product Configuration: Laser microscope unit, control box, PC,
Vibration isolation table (patented equipment DLS-68R), light source (LG-PS2)

Equipment Status
Instruction manual included
The workbench with the PC is not included.
