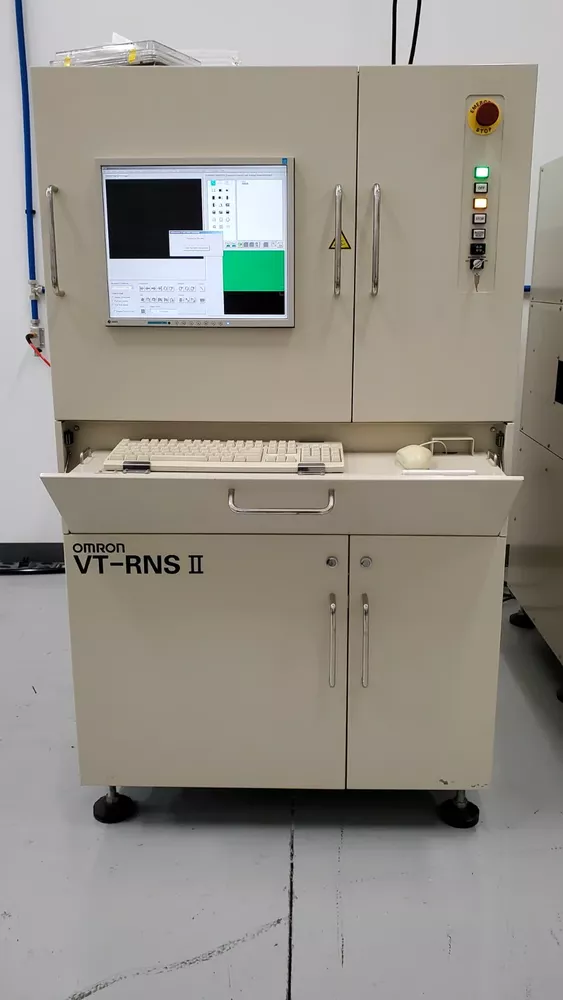

Omron VT-RNS-II Inline AOI Machine

Omron VT-RNS-II Inline AOI Machine
120V Single phase
Max board 18x20"
Board size : L
Good working order

M size L size
P/Z/S

Image signal input unit
Camera 3-CCD camera
Illumination Ring-shaped LEDs (R, G, B)
Image resolution 10, 15, 20 μm

Main unit
Feed method Belt
Line height 900 ±15 mm
PCB carrier width adjustment Automatic

PCB fixing method Outer frame
Power supply AC 100/115 V /120 V/200 V/220 V/230 V/240 V ±10% (single phase)
Air 0.4 to 0.6 Mpa
Ambient operating temperature +10 to +35°C
Ambient operating humidity 35 to 80% RH (with no condensation)
Weight Approx. 500 kg Approx. 650 kg
Dimensions 700 (W) × 900 (D) × 1,600 (H) mm
(Excluding Patlite signal tower) 920 (W) × 1,365 (D) × 1,600 (H) mm
(Excluding Patlite signal tower)
