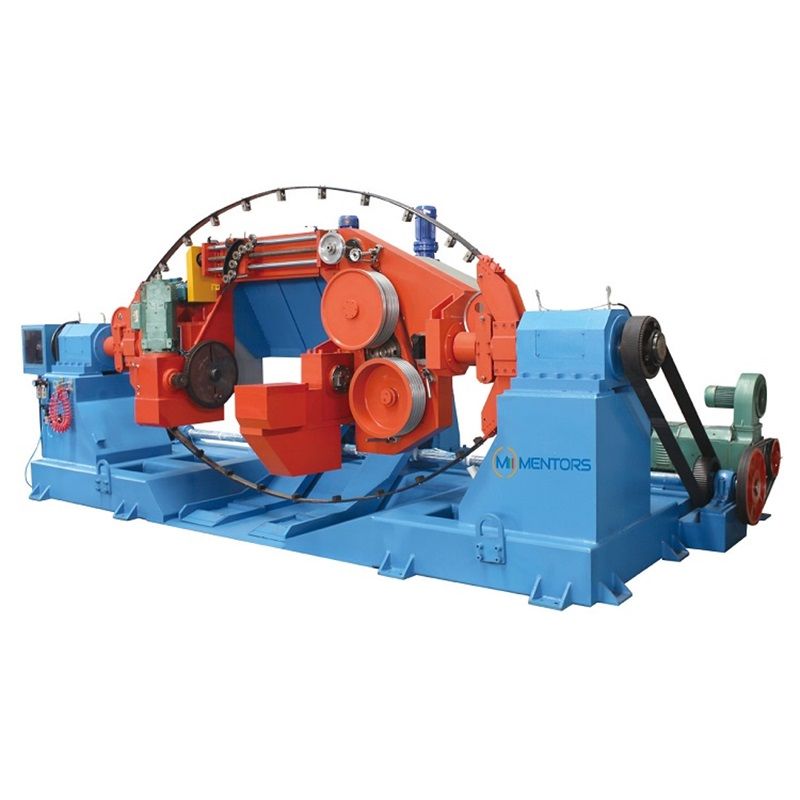

Mentors Machinery 1250 Automatic Wire Buncher SY-1250

1. Application:
This type machine is used for twisting bare copper or aluminum wire with big size.

2-Main feature:

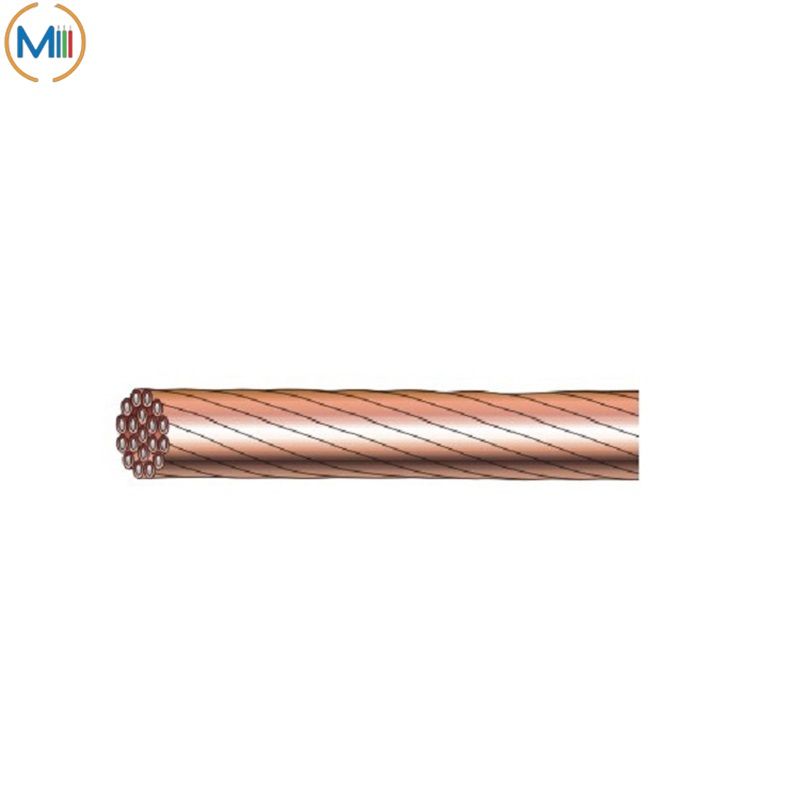

It is used for twisting copper or Aluminum wire with 7 wires.

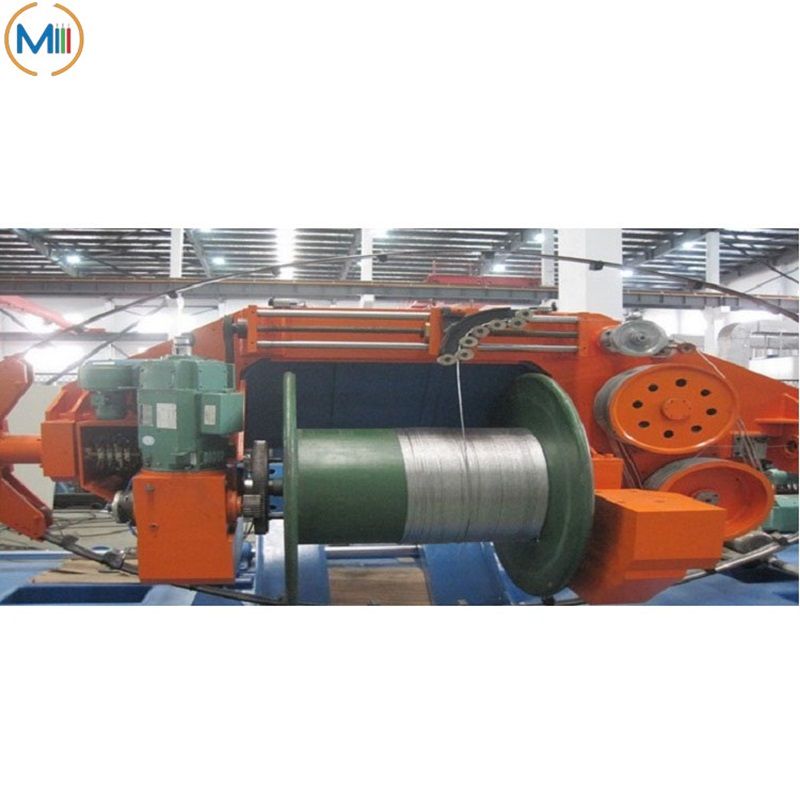

1)Take-up bobbin: 1250
2)Max speed: 800r/min
3) Raw material: copper wire, Aluminum wire
4) Twisting type: double twist

3-Parameters:
Machine type SY-1250
Wire product of stand Twisting 7 copper wires or aluminum wire
Cooper wire individual Φ1.0-3.0 MM
Finish stranded wire/max. 10 mm φ/max
Finish stranded wire/Max. 15mm φ/max
Section of strand-twisting
(Flexible strand) 3.5÷70mm2(6AWG÷450MCM)
Section of strand-twisting
(Semi-frametwisting1+6) 3.5÷50mm2(6÷1/0AWG)
Section of compaction Cu 3.5÷50mm2(6AWG÷300MCM)
Section of compaction Al 3.5÷70mm2(6AWG÷301MCM)
Line speed/Max. 150mpm/max
Stand pitch(mm) 40-350mm
Rotate speed 8000rpm/max.(1600TPM)
Load weight/Max. 3000KG
Standing Direction S,Z Direction
Main motor(DC/AC/HP) 45kw D.C. motor
Drive of Capstan(DC/AC/HP) 30kw D.C. motor
Drive of take-up unit(DC/AC/HP) 7.5kw D.C. motor
Drive of traverser 0.75kw Inverter motor
Drive of loading&unloading 1.5kw Inverter motor
Take-up bobbin size 1250mm

4-Advantages:
1) More stability, high production efficiency, low noise and easy to operation.
2) Spring bow can prolong the life.
3) Take-up tension is controlled by magnetic powder clutch or mechanical type.
 4) If the wire breaks, the machine can stop automatically.
