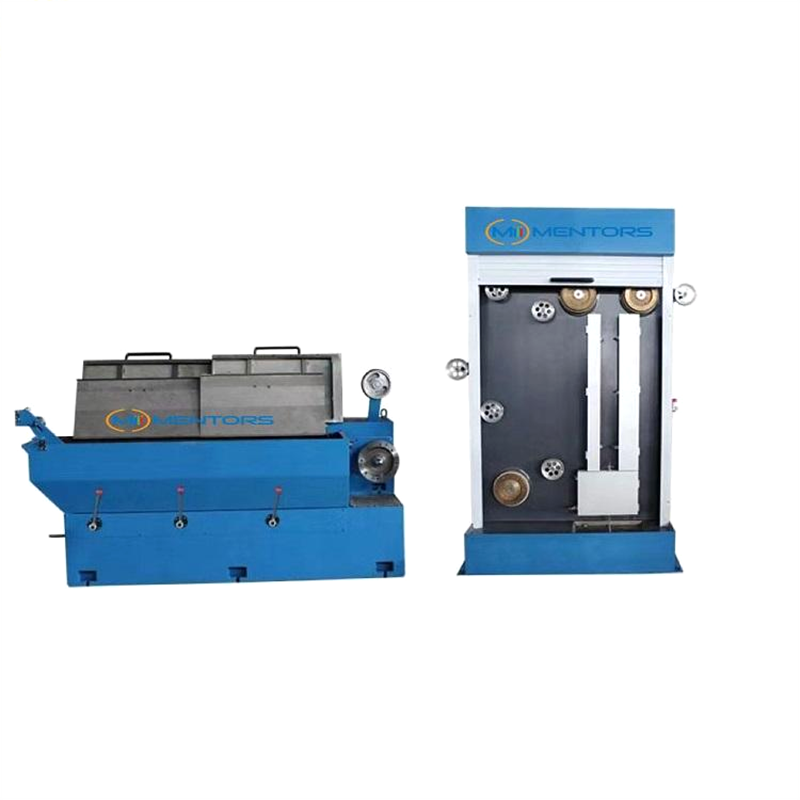

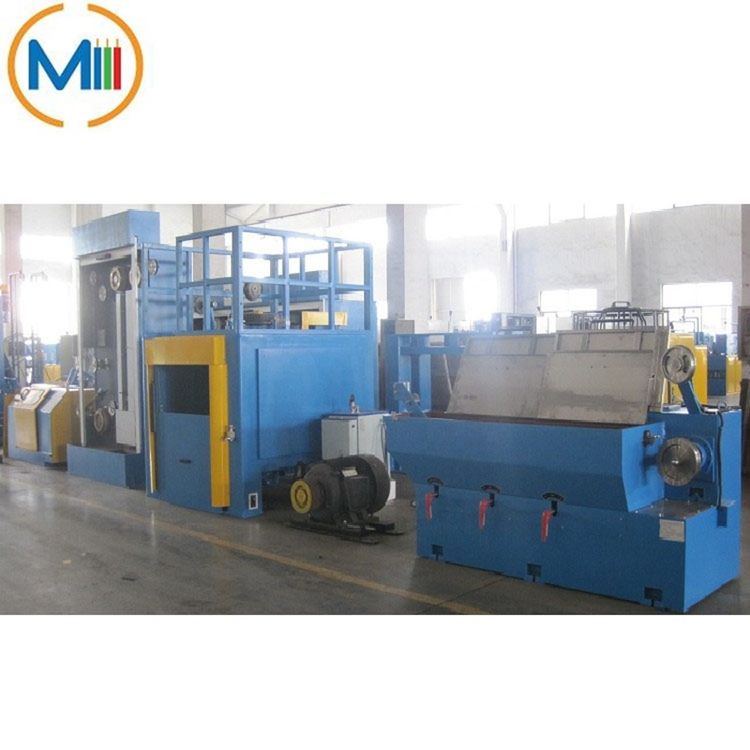

Mentors Machinery Intermediate Copper Wire Drawing Line SY-17DHT/B

1. Application:
This machine is used for drawing and annealing copper wire from 3.0 mm to 0.4-1.6 mm.
2.Main feature:
This machine is used for drawing and annealing copper wire from 3.0 mm to 0.4-1.6 mm.Outlet wire can be collected by single spool take up or coiler.
1) Max.Dies Qty: 17.
2) Outlet wire size: 0.40-1.60 mm.
3) Max speed:25-30 m/s.

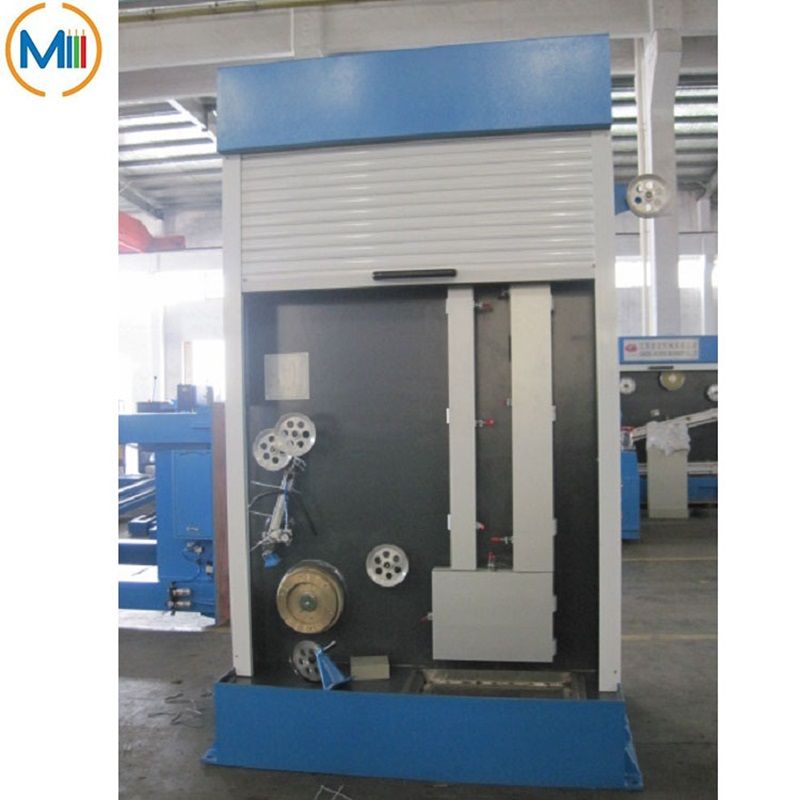

4) Vertical annealing.

3.Parameters:
Item Data
Machine type SY-17DHT/B
Control system PLC
Inverter control Dual inverter control
Drawing dies No./max. 17
Inlet diameter Ø 2.5- 3.5mm
Out diameter Ø0.4- 1.6mm
Drawing line speed /max 2000m/min
Slip ratio of m/c 20%
Fix speed capstan slip ratio 15.5%
Frame Ironed cast
Capstan Carbon fibre
plasma capstan
Main motor 55kw
Spooler motor 11kw
Fix speed capstan dia. Ø 250mm
Dia.of annealing Ø 250mm
Annealing voltage DC 0-60V
Annealing current DC 2000A
Protection type Steam or nitrogen
Spool bobbin size Ø 500mm or according to customers

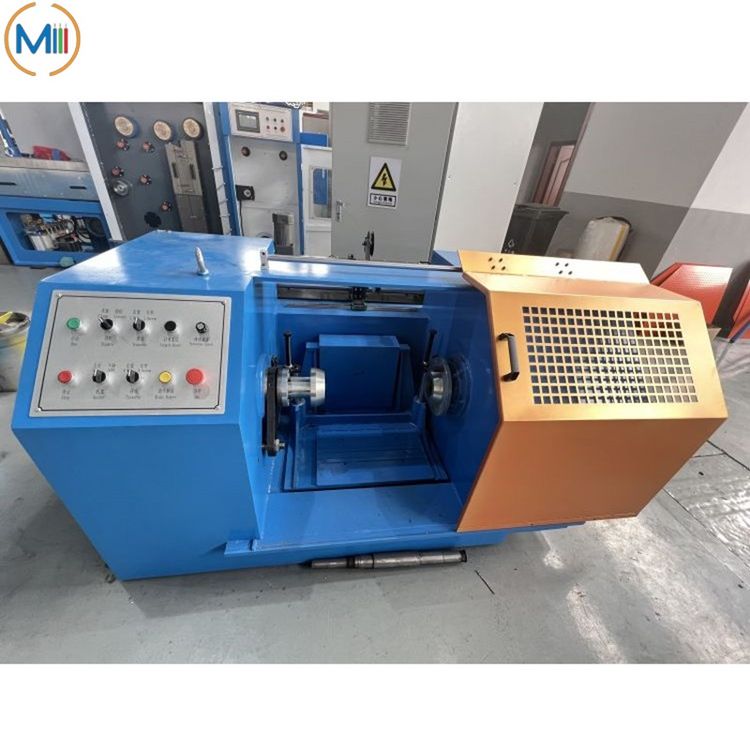

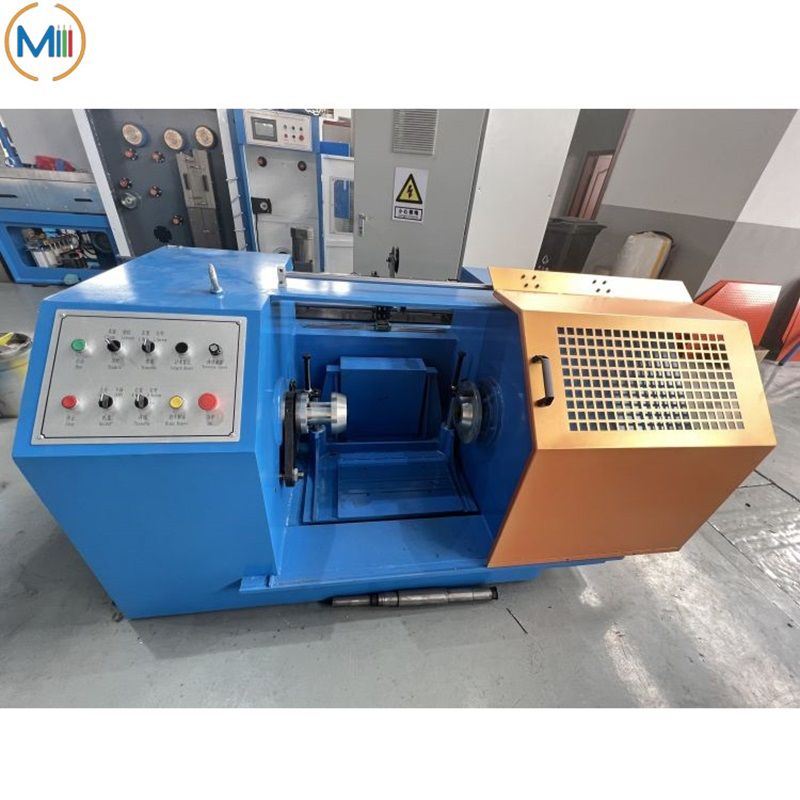

Optional take-up machine Coiler
4.Advantage:
4-1. For same finished size, compare to Rod Breakdown Machine, electricity and energy saving.
4-2. Ironed cast and Wear-resistant capstan can keep long life.
4-3. Fully immersed lubrication, lubrication tank body is separated with gear box without oil mixed.
4-4. Besides normal copper, also is a good choice for welding wire.

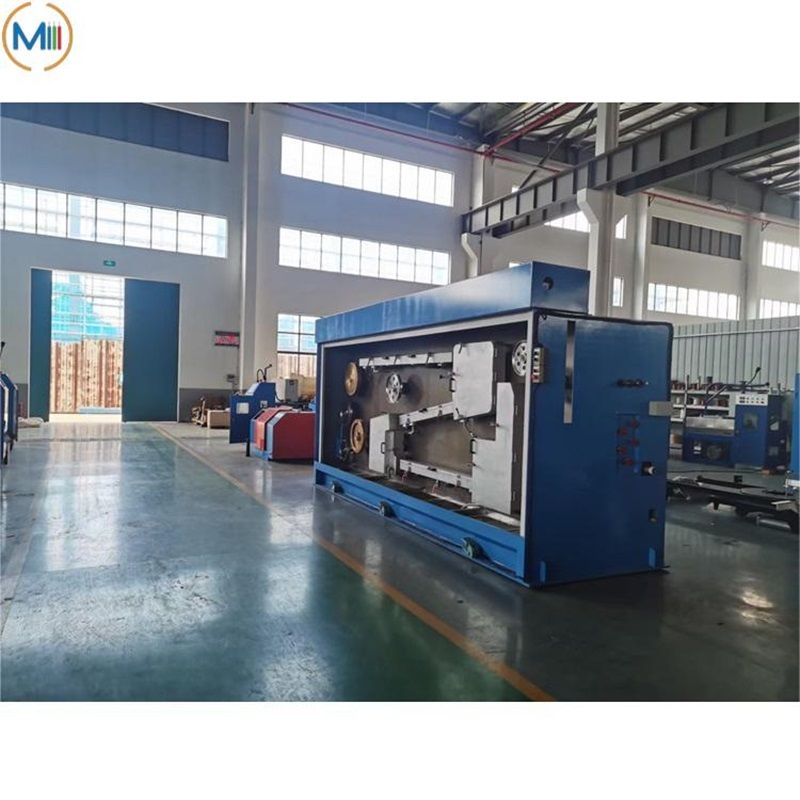

4-5. Horizontal annealing design is easily for operating.
4-6. Longer annealing section with tension ensure good and stable elongation.
