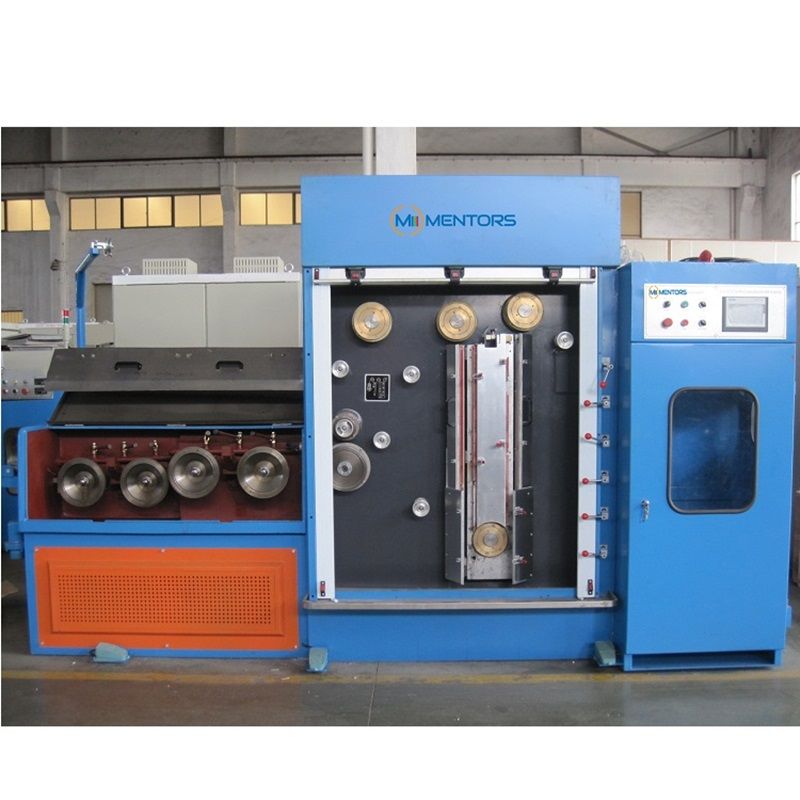

Mentors Machinery Fine Wire Drawing Machine with Annealing SY-DT24

1. Application:
Fine wire drawing machine with annealing is special for drawing and annealing copper wires .
2.Main feature:

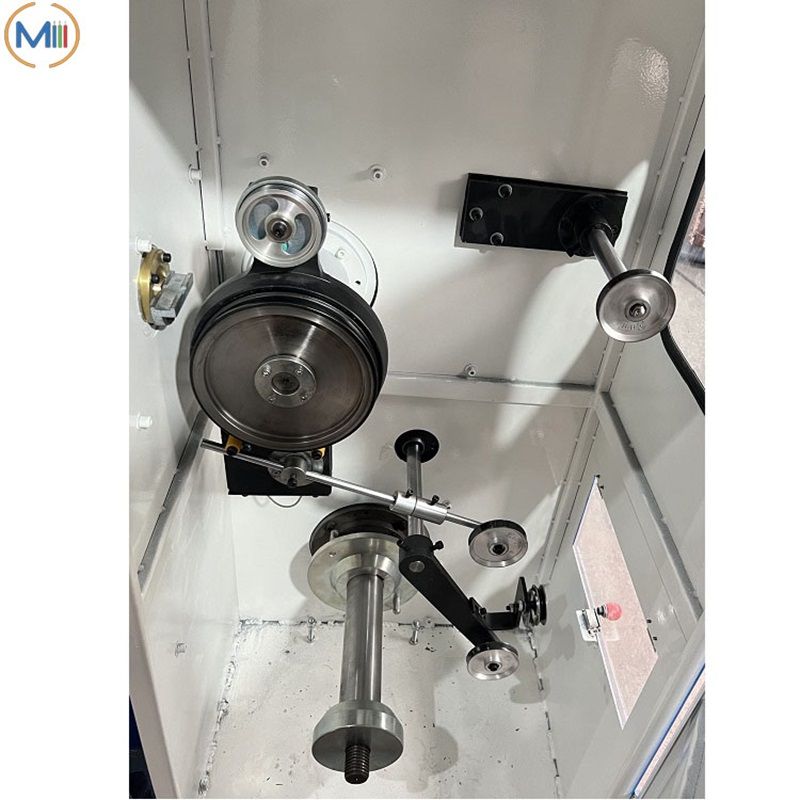

Finished wire is wound by 300 steel bobbin.
1). Wire Quantity: 1 WIRE
2). MAX.Inlet Wire: 0.5- 1.2 mm
     Outlet Wire: 0.15-0.35 mm
3). Raw Material: Pure Copper or Brass Wire

3-Parameters:
Item Data
Machine type SY-DT24
Inverter control Dual inverter control
Drawing dies No./max. 24
Inlet diameter Ø 0.5- 1.2mm
Out diameter Ø0.15- 0.35mm
Max.Drawing line speed 1800m/min
Slip ratio of m/c 13%
Fix speed capstan slip ratio 8%
Frame Welded by steel plate
Capstan Ceramic plasma capstan
Main motor 15kw
Spooler motor 4kw

4-Advantage:
1). Double inverters can keep the outlet wire precisely tension and the slip ratio of wire will be reduced to the minimum.

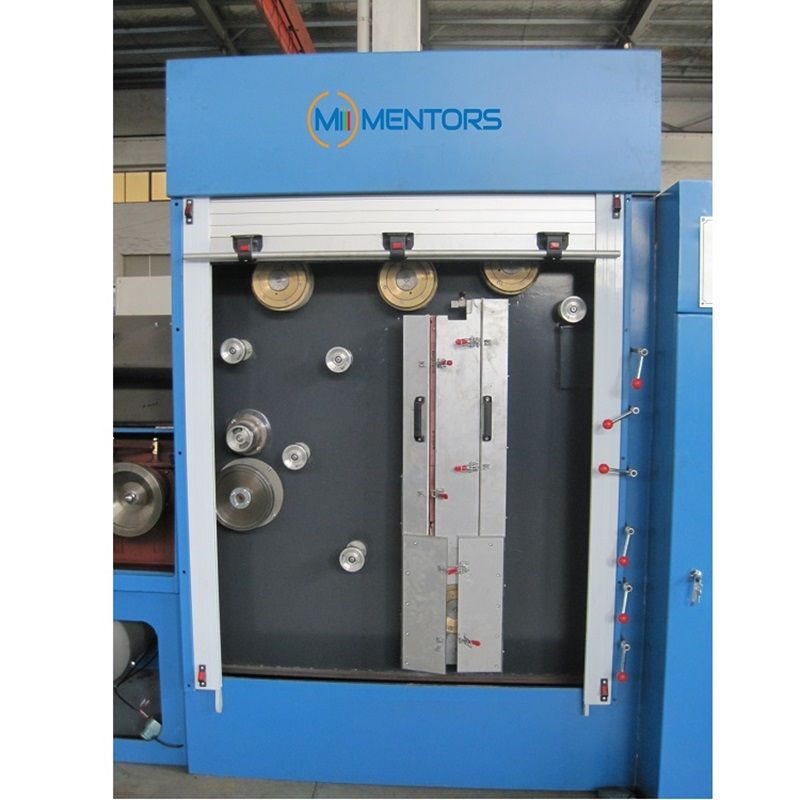

2). Third-section-annealing system, outside electrically neutral (no current flow to other unit)
3). Machine's body and other key components and parts are produced by our own factory, quality is reliable.
